PHOTO GALLERY

GPR Surveys in Parks, AB

GPR Surveys in National Parks

GPR Surveys in National Parks

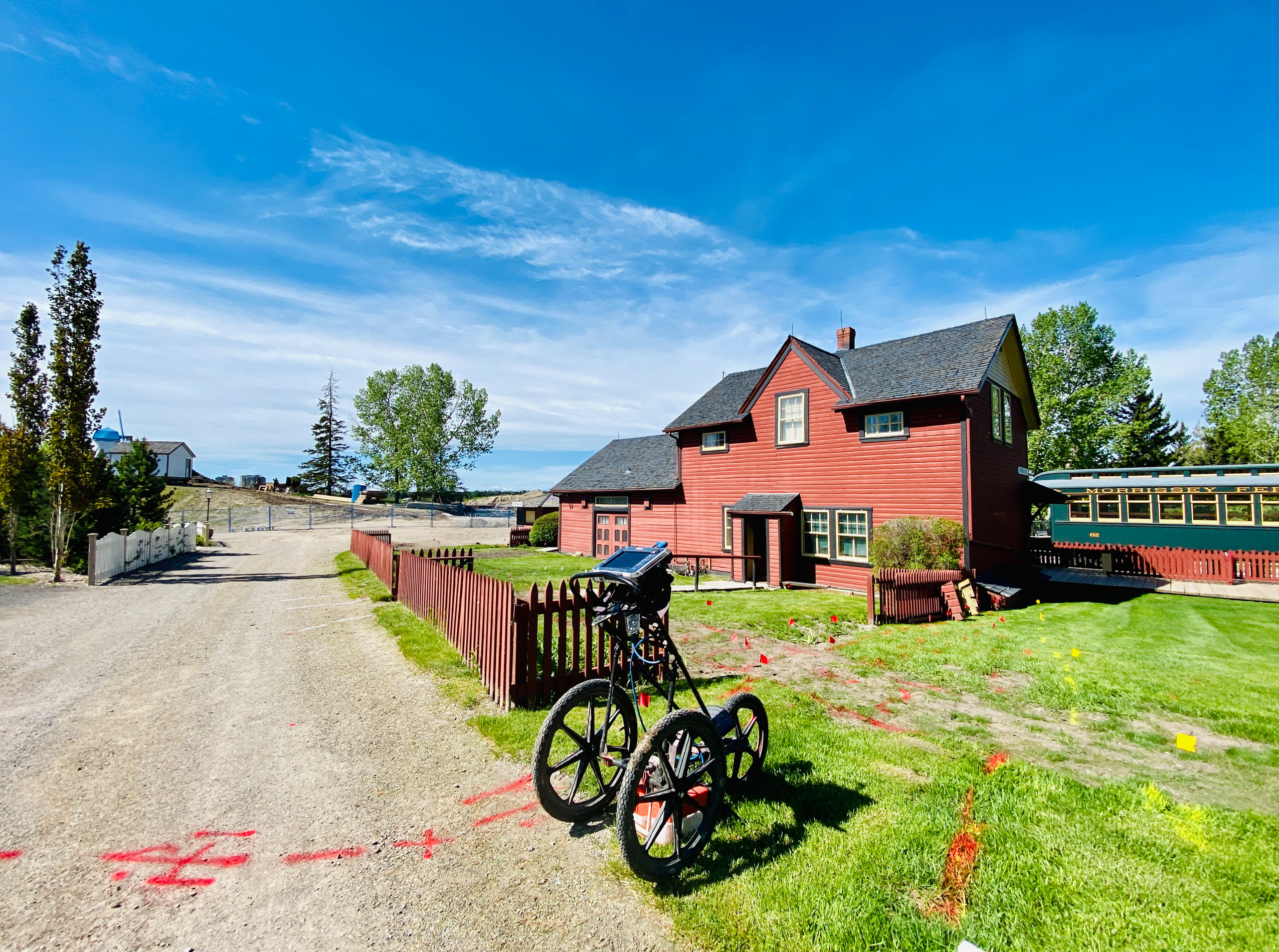

GPR Surveys in Heritage Park

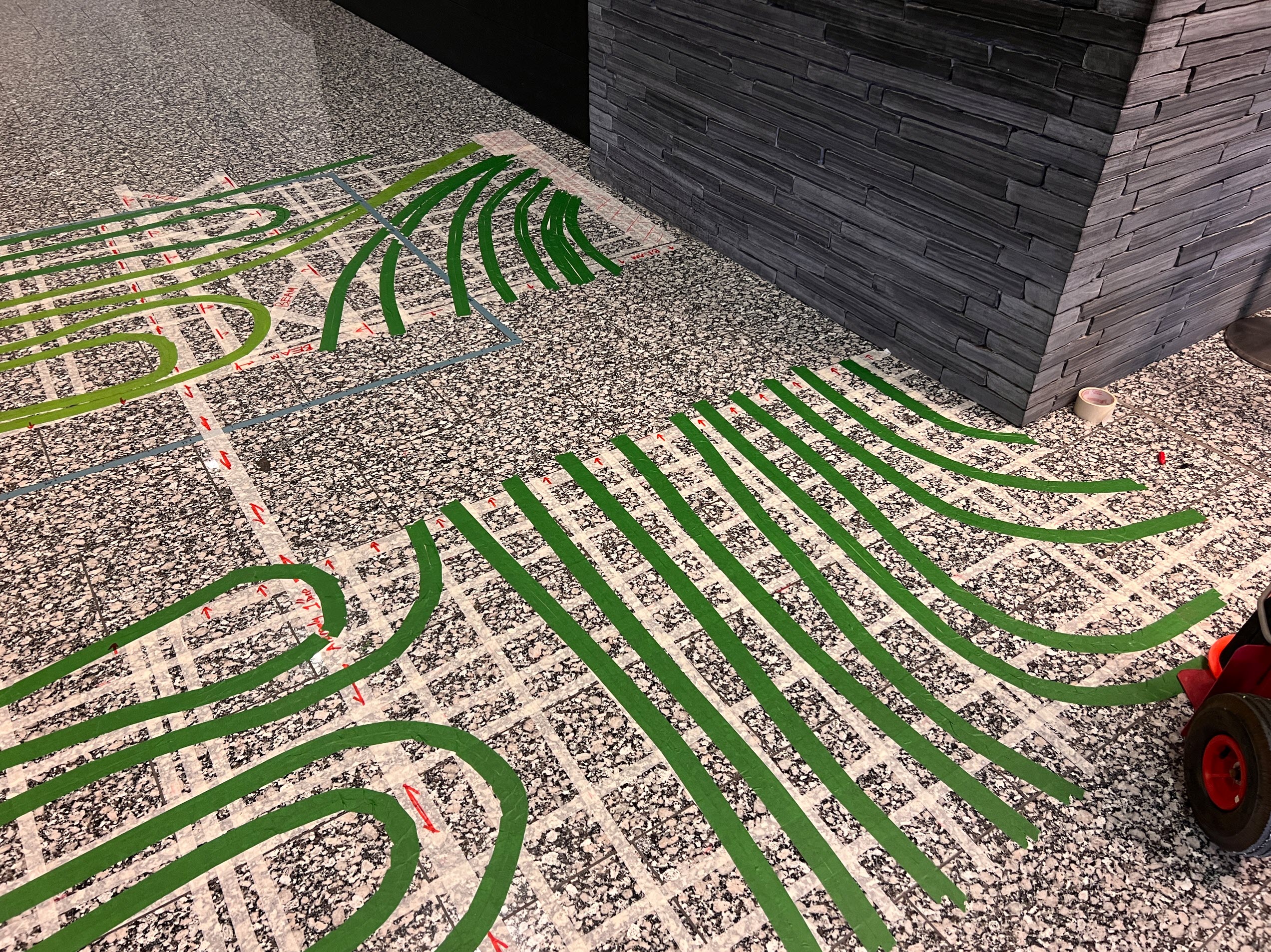

Infloor Radiant Heat (Glycol) Mapping Using Ground Penetrating Radar (GPR), YYC, AB

: Glycol pipes, rebar and other critical targets mapping prior to coring.

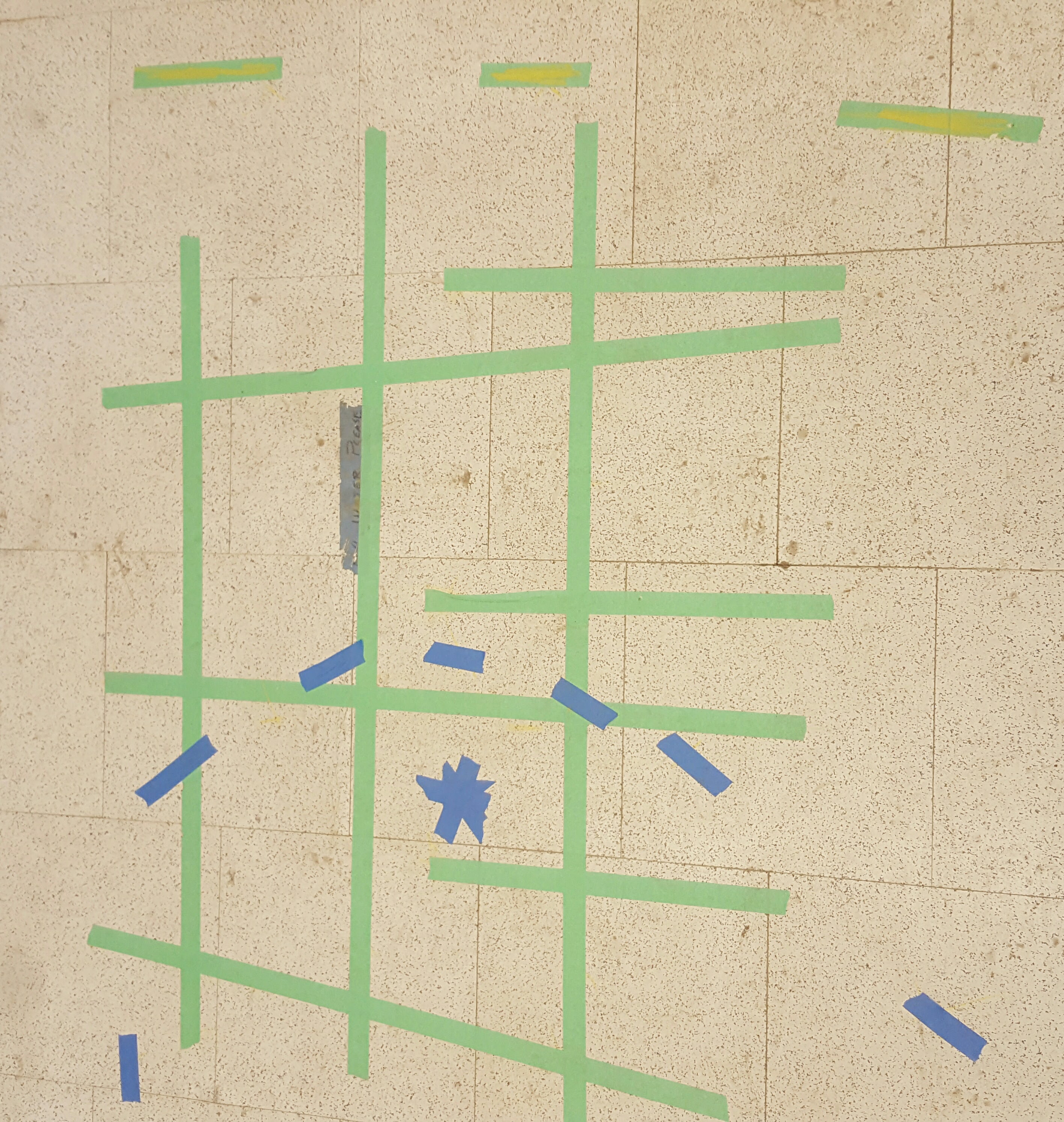

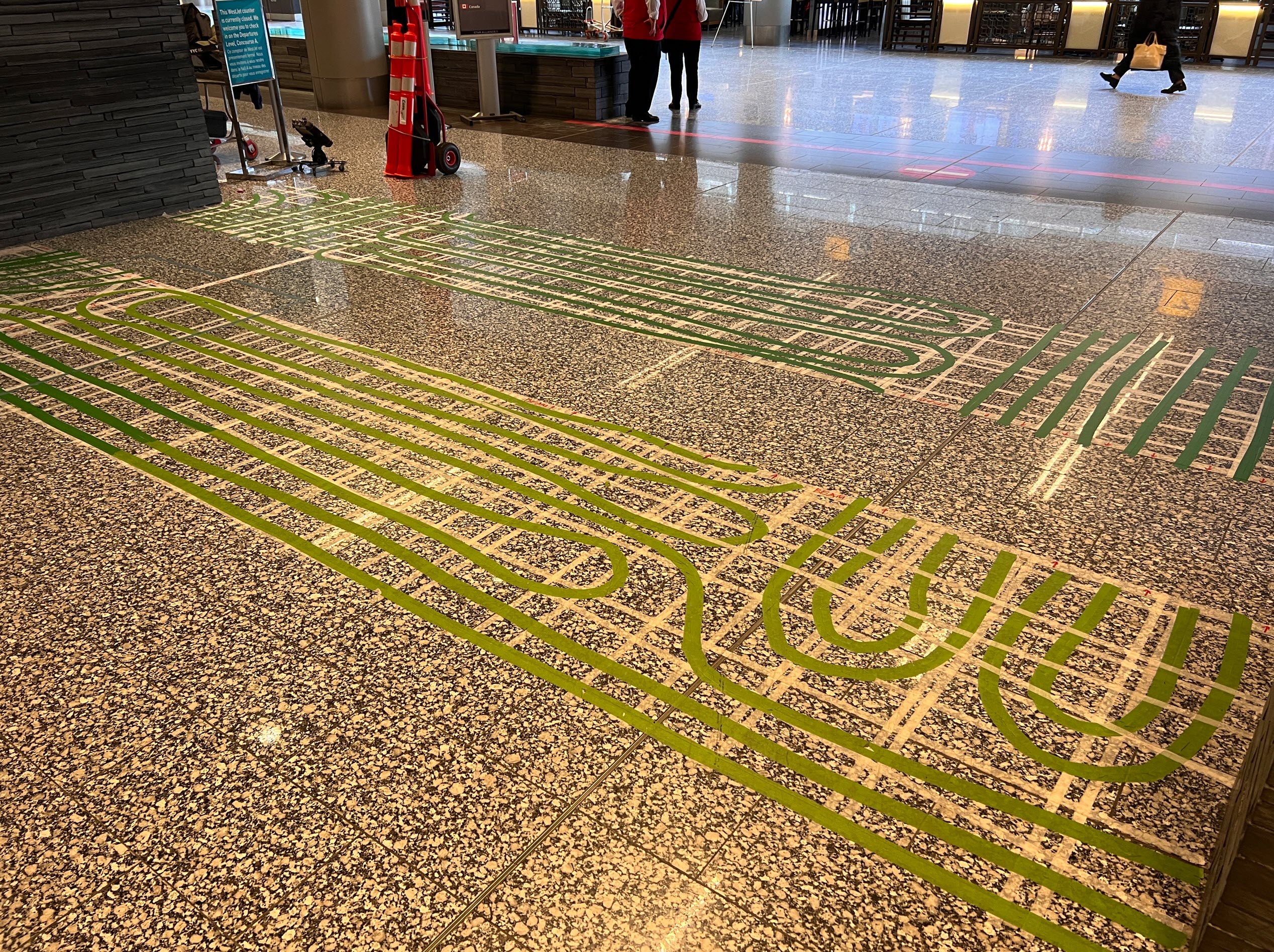

: Green lines are glycol pipes in the slab

: 4″-6″ spacing pipes on top of rebar (white))

Reinforcement detection, LRT Stations, AB

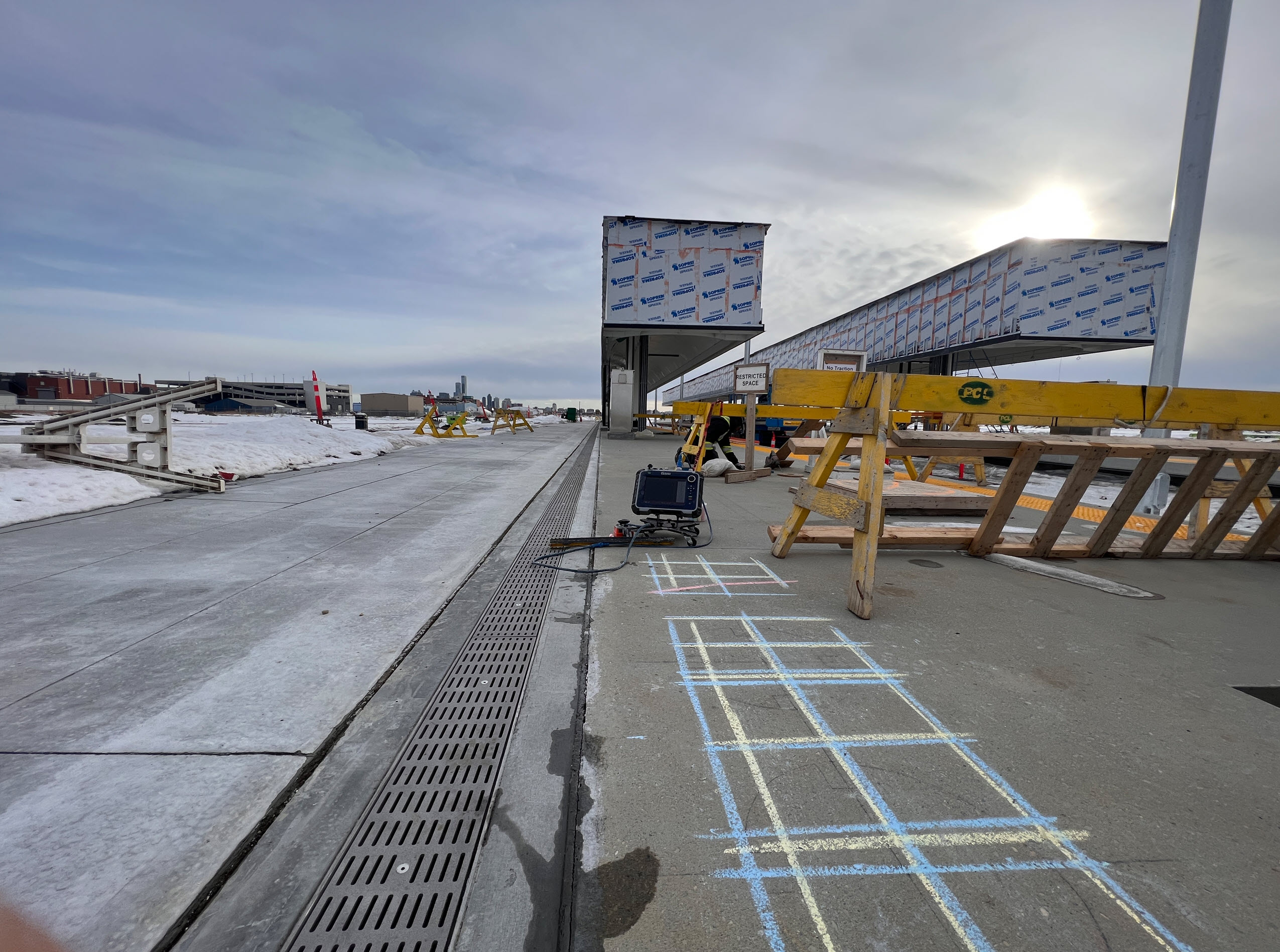

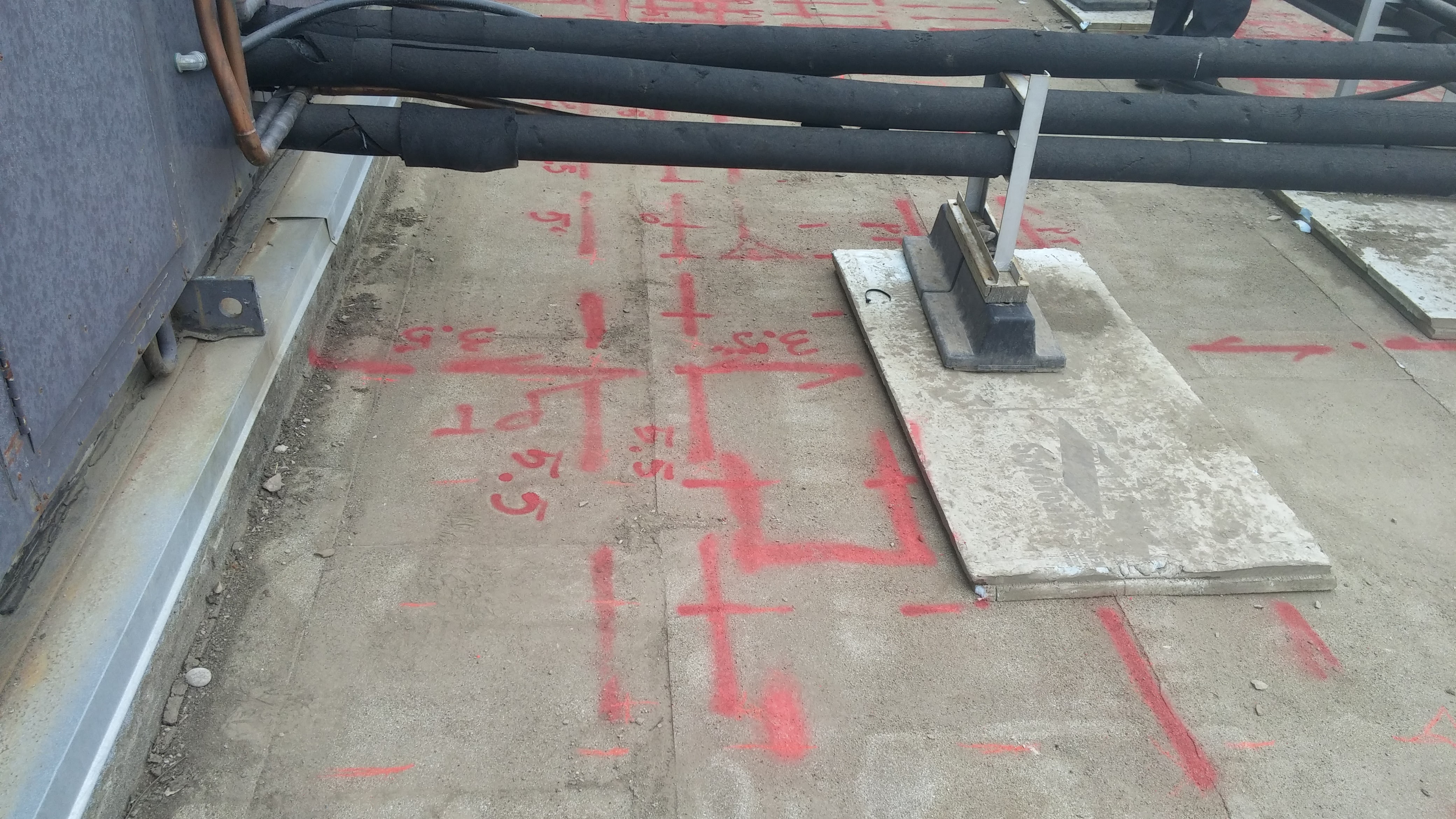

Rebar and pretensioned cables markings for new LRT stations

Rebar and pretensioned cables markings for new LRT stations

Rebar and pretensioned cables markings for new LRT stations
Infloor Radiant Heat (Glycol) Mapping Using Ground Penetrating Radar (GPR), Fort McMurray, AB

: GPR Radiant Heat Mapping

: GPR Radiant Heat Mapping

: GPR Radiant Heat Mapping

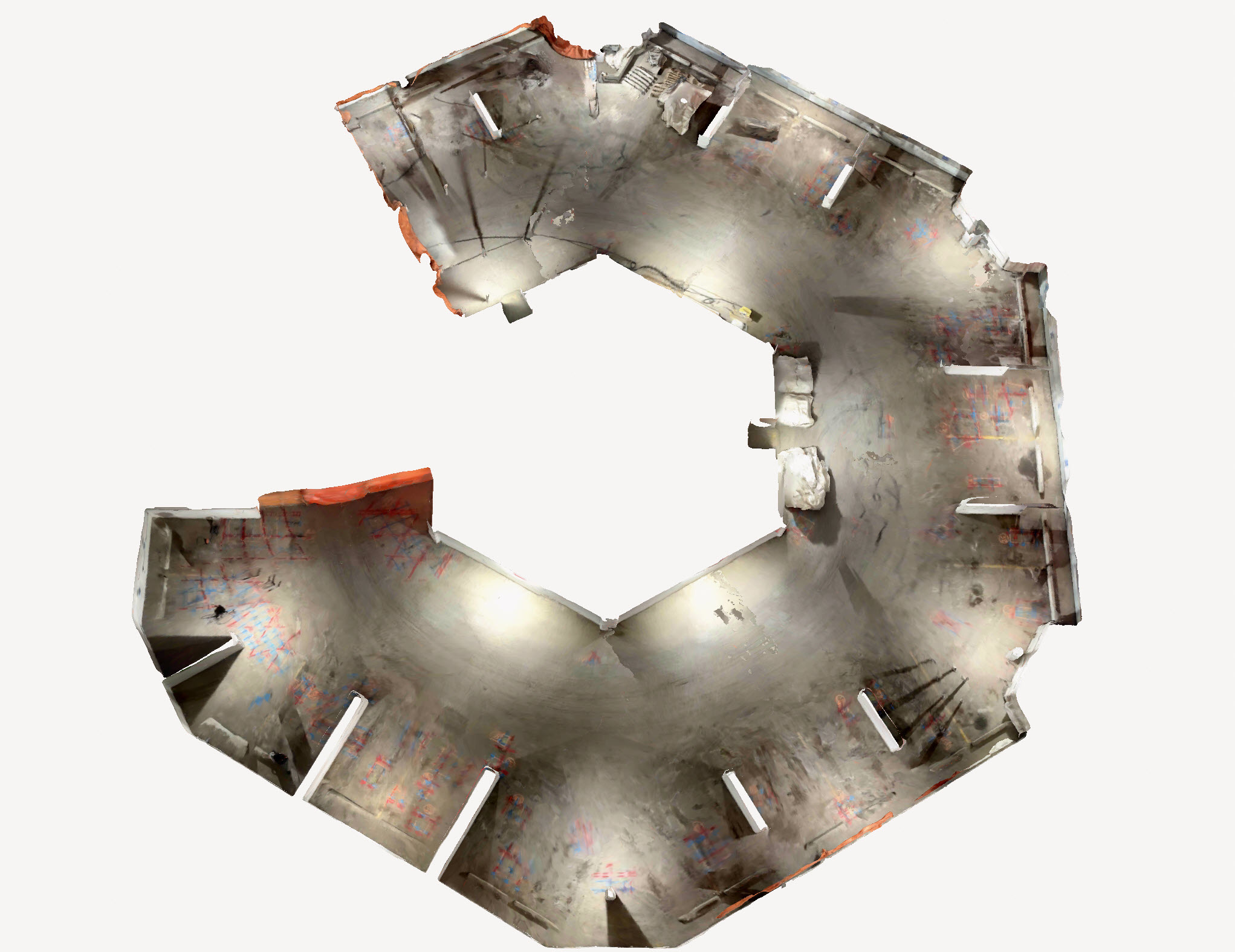

Post-Tensioned Cables Mapping Using Ground Penetrating Radar (GPR), Downtown Calgary, AB

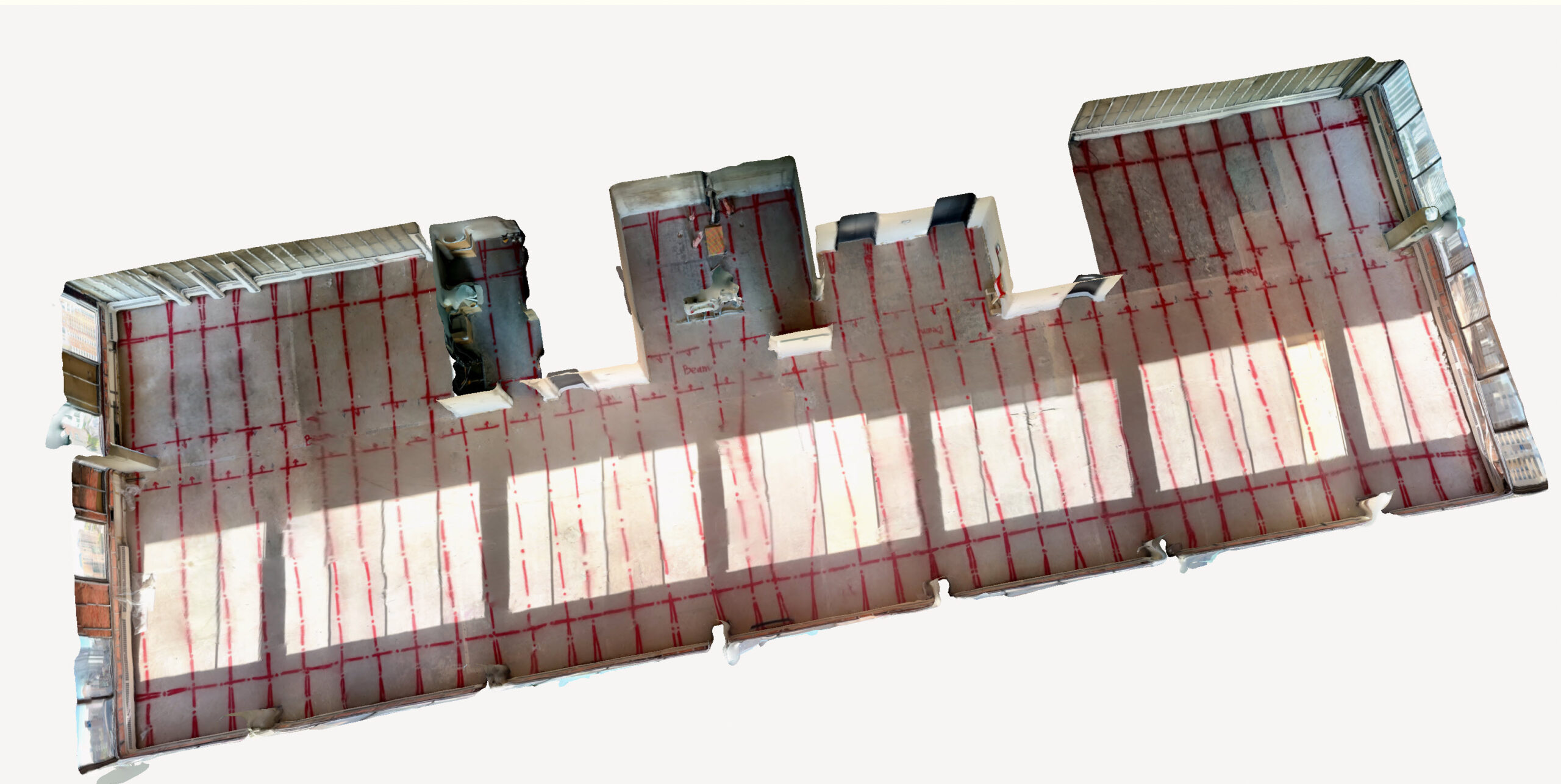

: Post-tensioned cables mapping for a commercial building in downtown Calgary completed by SCANTEC.

: The cables were placed in a grid pattern with 45 inches to 50 inches spacing between bundles in both directions. Each bundle was a group of 2 or 3 tendons. The depth of tendons varied throughout the floor.

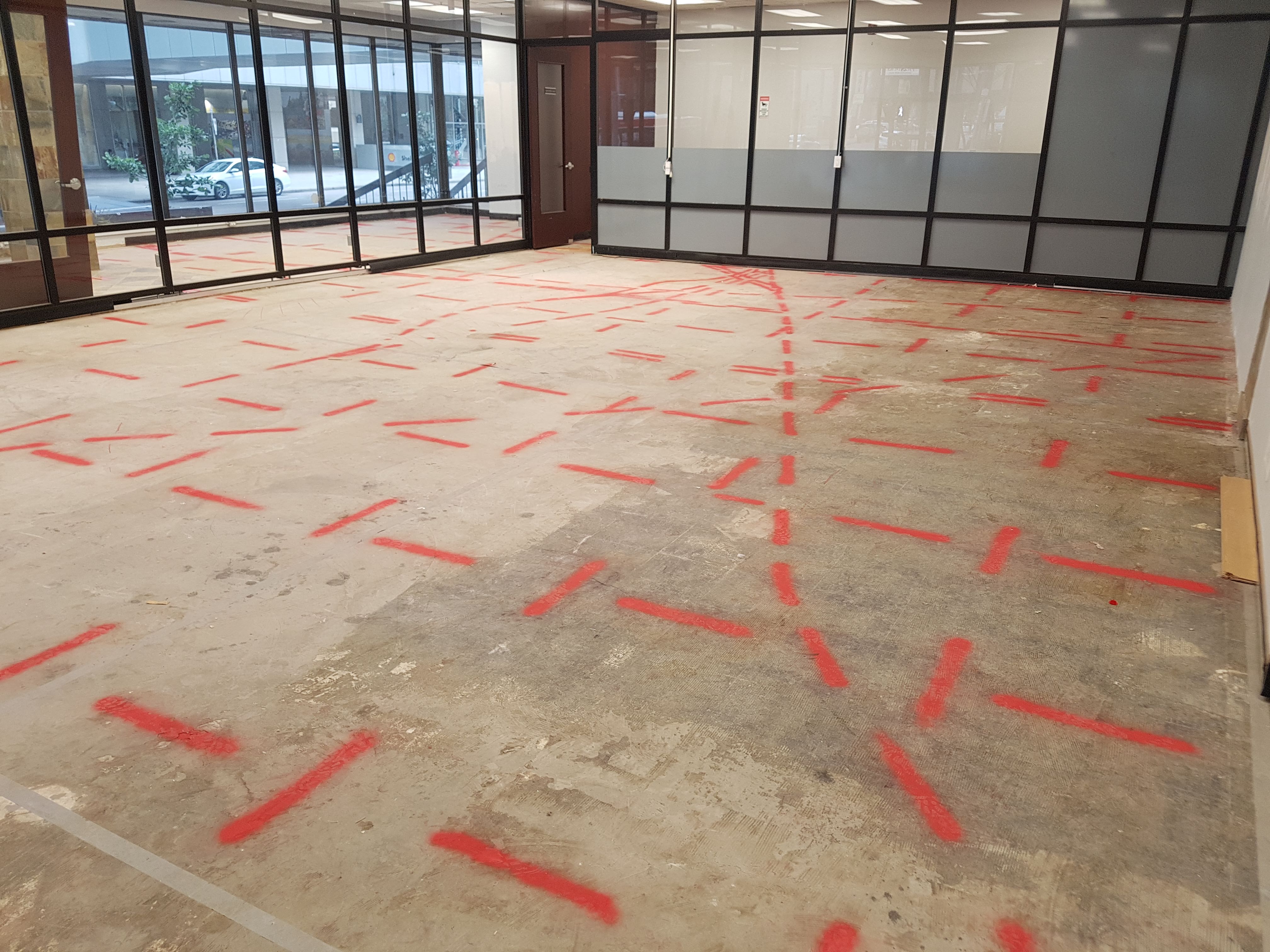

: Interpreted post-tensioned cables were marked on the floor with red spray paint.

Post-Tensioned Cables Mapping Using Ground Penetrating Radar (GPR), Kensington, Calgary, AB

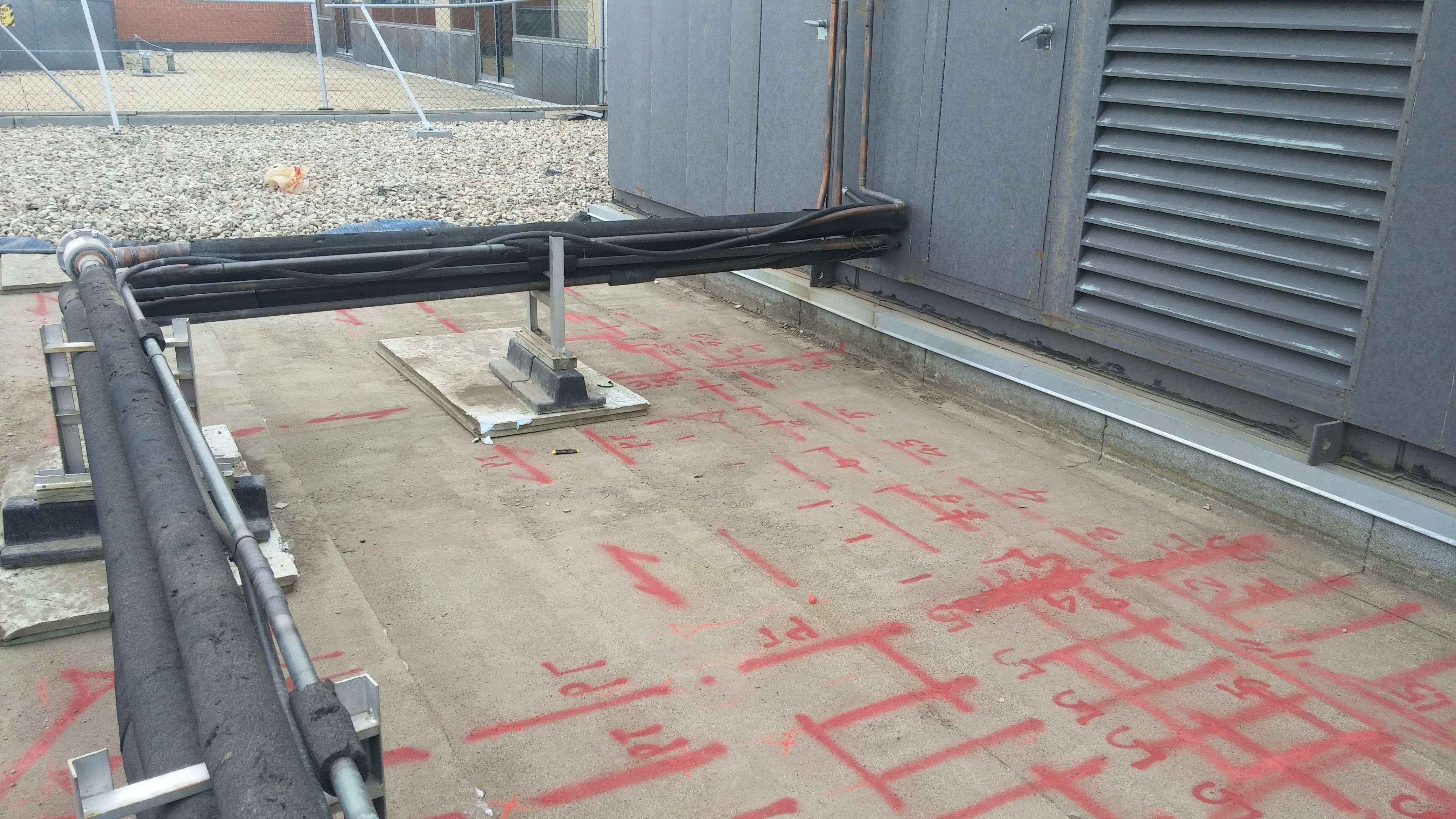

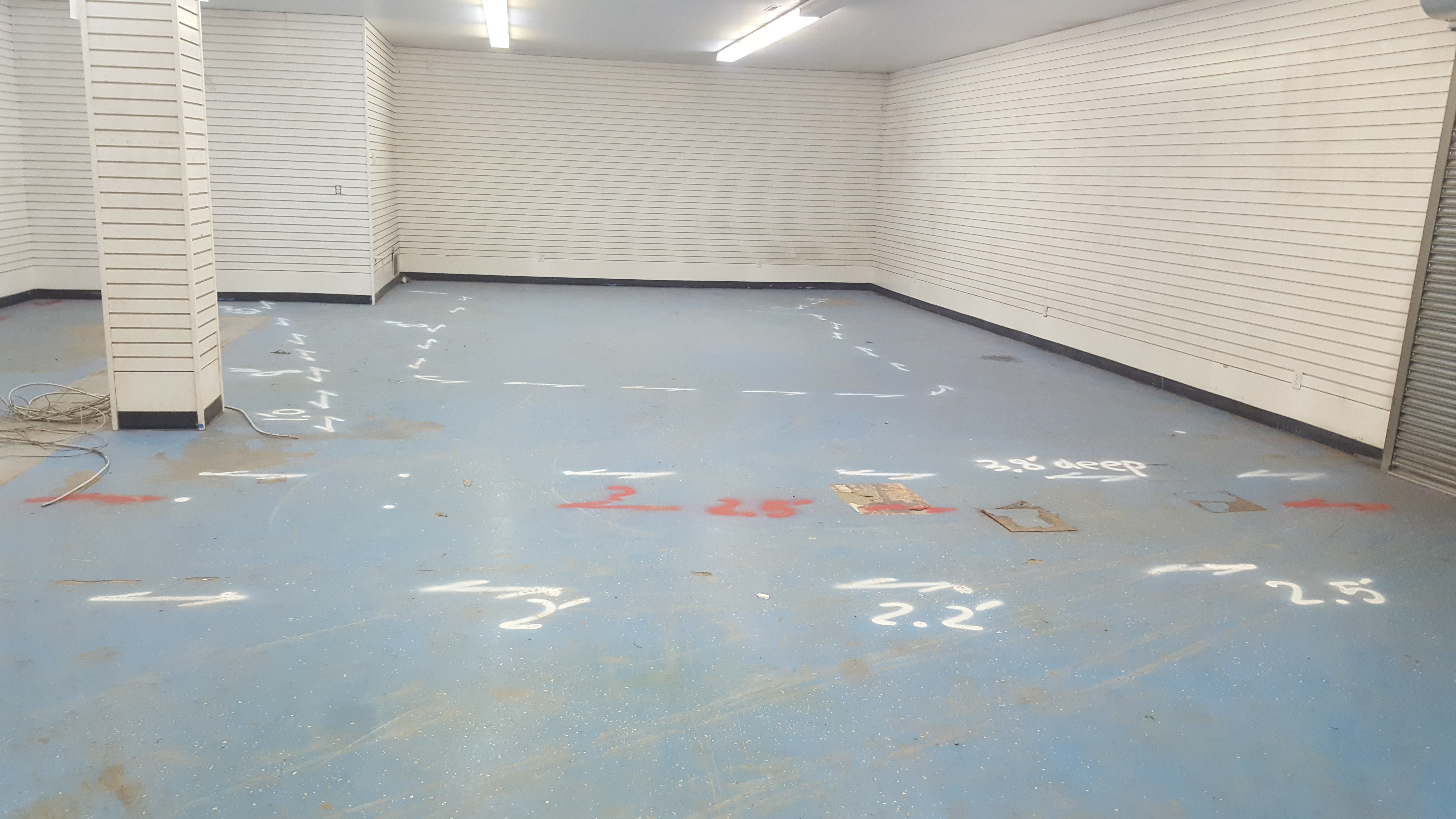

: PT cables were identified, marked with depth and location

: Tensioned cables were distinguished from rebar and other objects

: Post-tensioned cables found in both directions

: Beam location was also marked

: Other sample of findings

: The far side was done with new anchors and dowels

: Cable was marked as PT

: Location along with depth

GPR Interior Scanning at a Fabrication Facility prior to Soil Boring, Calgary, AB

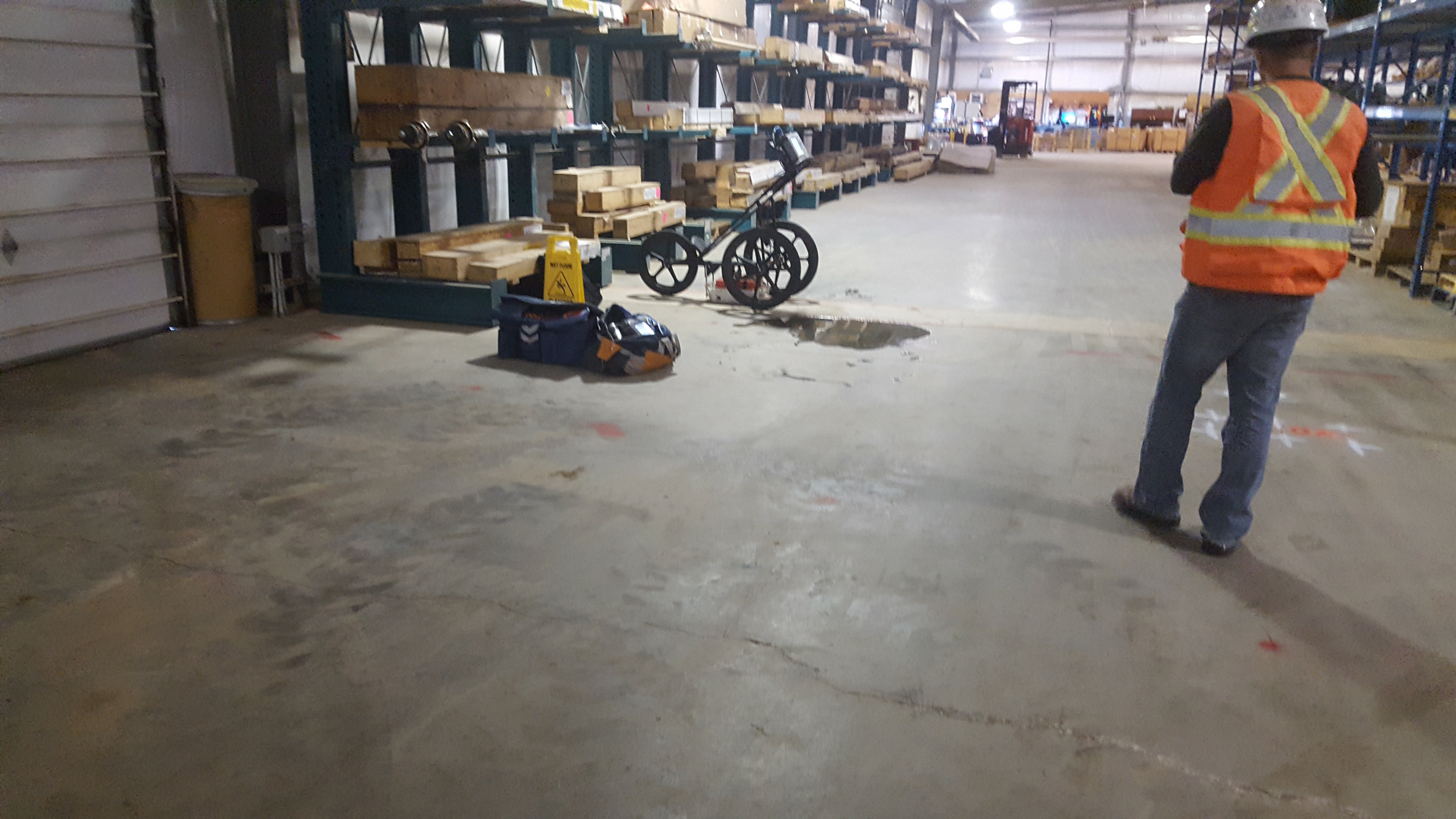

: Interior GPR Scanning at Fabrication Facility. Hydraulic pipes are in the white trench

: Power line below slab (red)

: Rebar in slab on grade

: Rebar pattern and electrical

: Hydraulic pipes are mapped

: Exterior scanning

: Main power bank crossing the proposed area

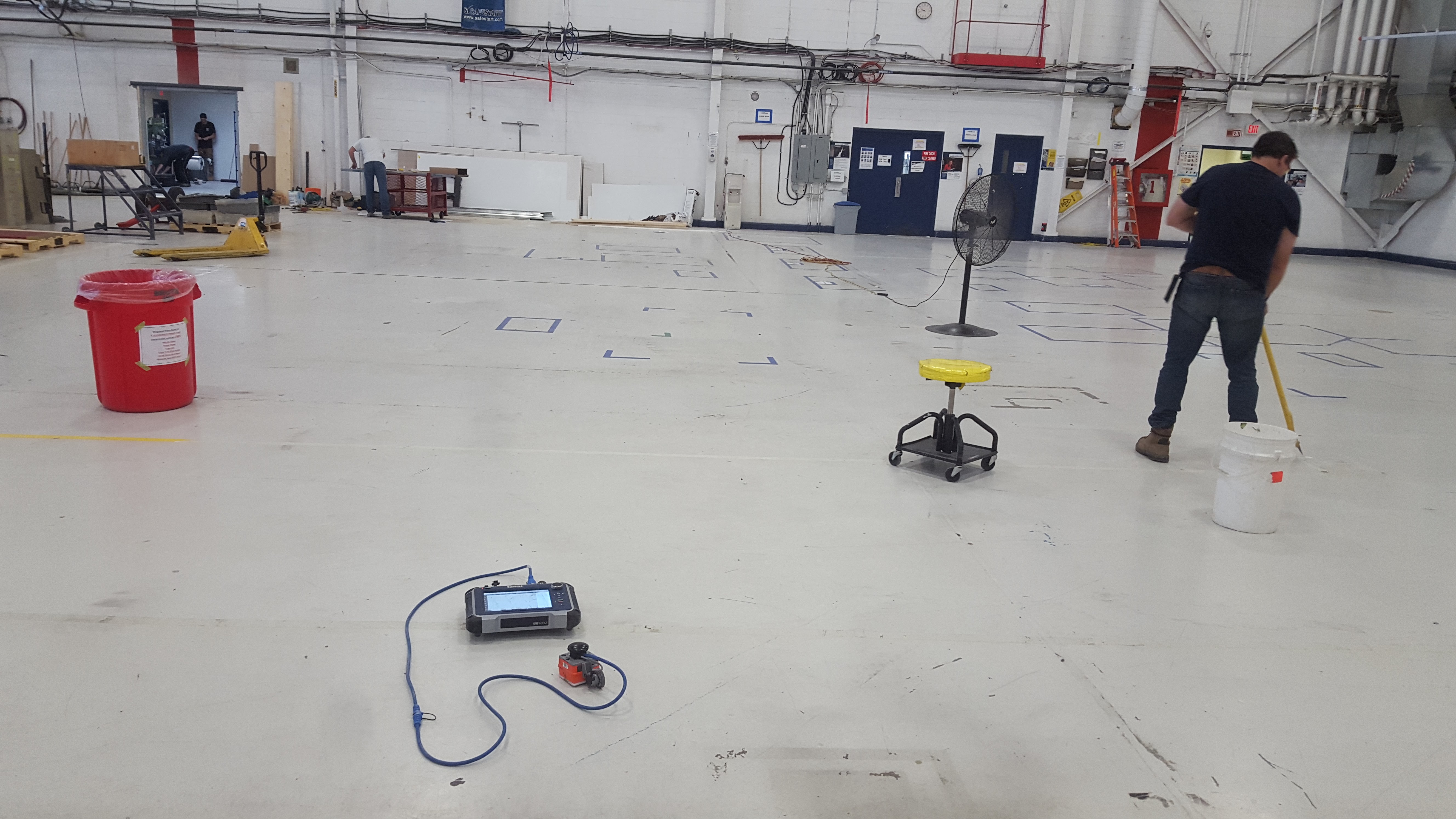

: Warehouse floor scanning with 400 MHz, 1600 MHz antennas and Radiodetection

GPR Scanning for Underground Utility at Hospital Campus, Calgary, AB

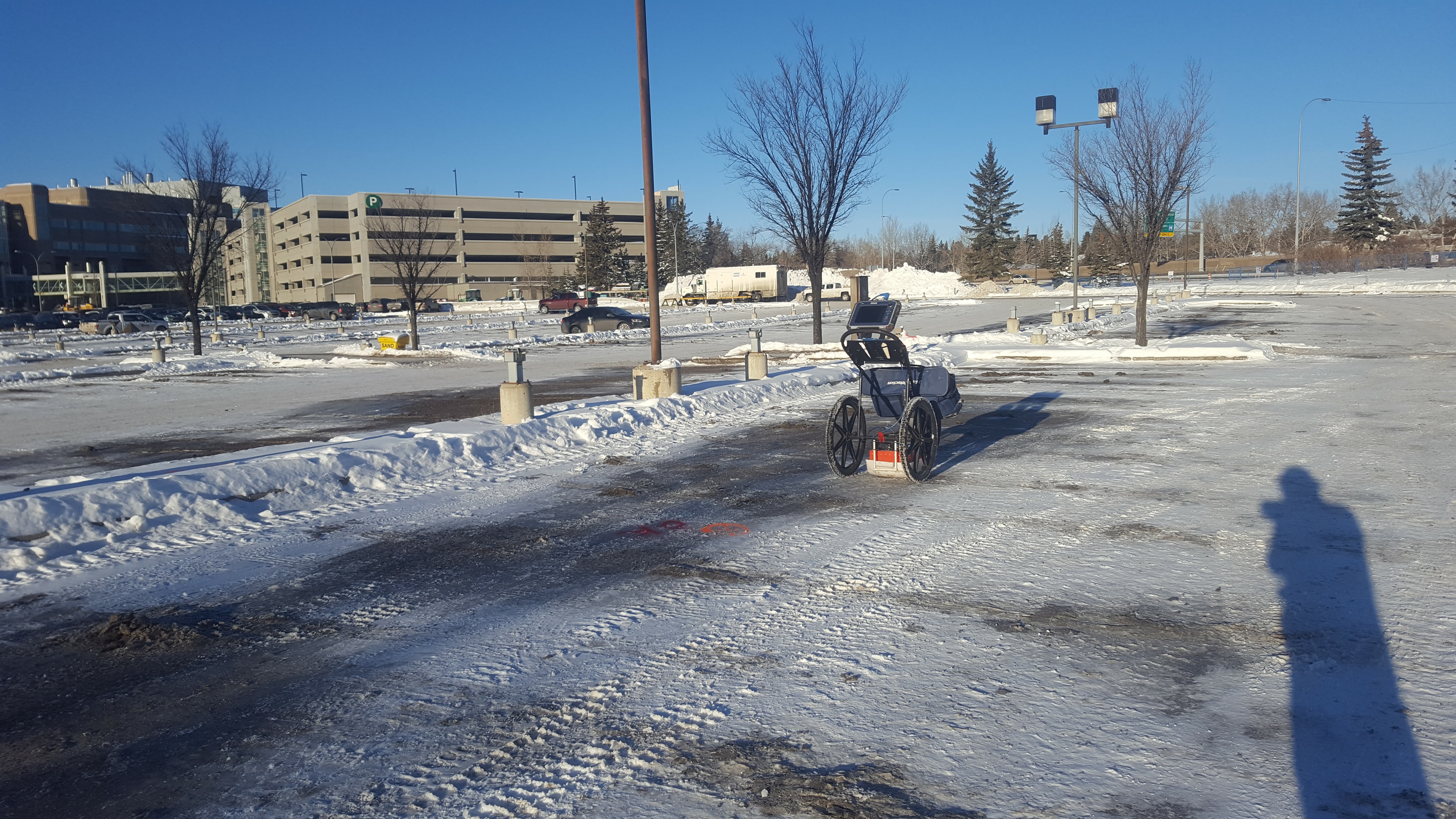

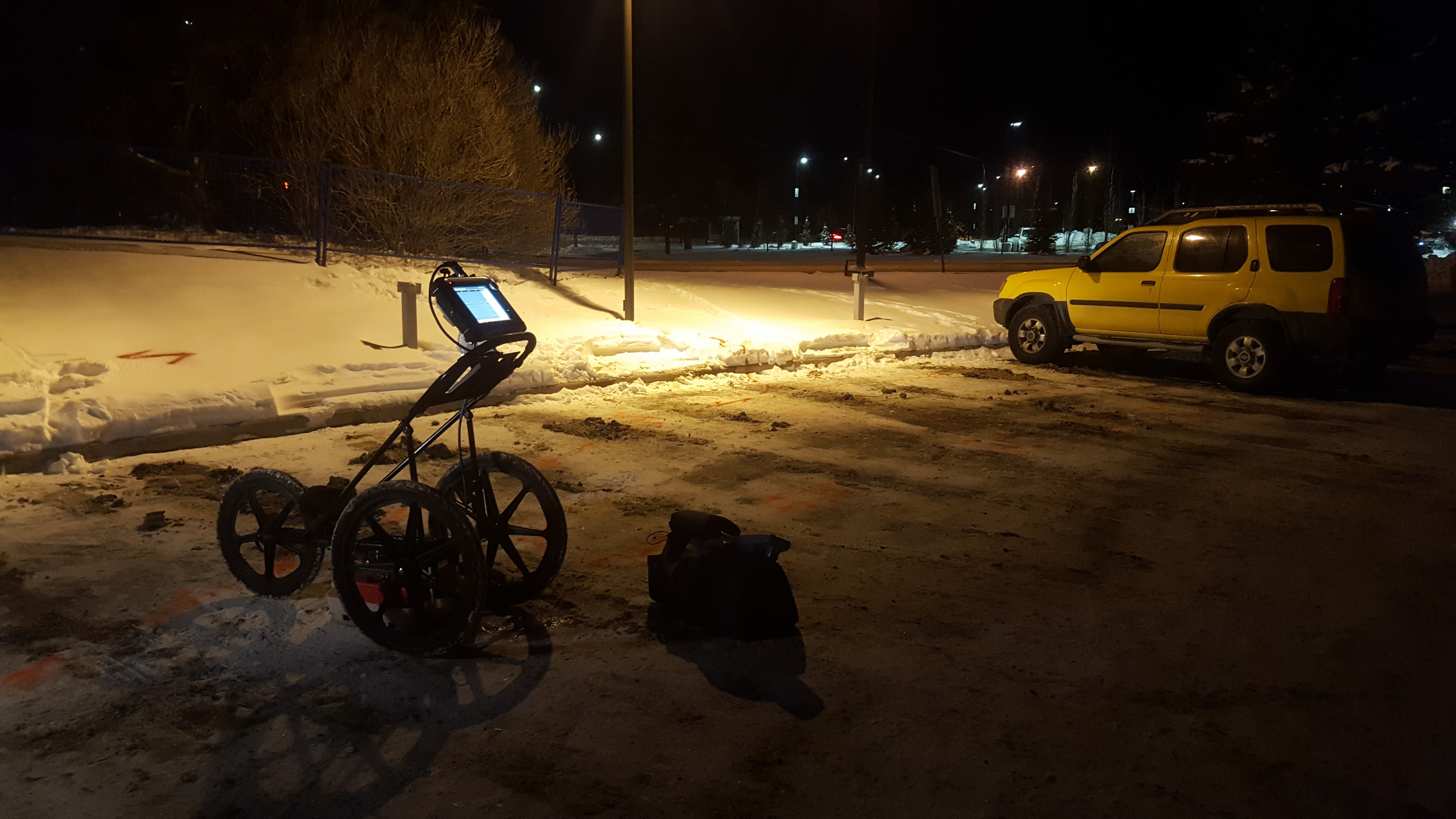

: GPR Scanning for Underground Utility within Parking lot

: Power line was located

: GPR and RD were used

: GPR Scanning for Underground Utility within Parking lot

Ground Penetrating Radar (GPR) Scans at Gas Station for USTs, Production Pipes and Power, Calgary, AB

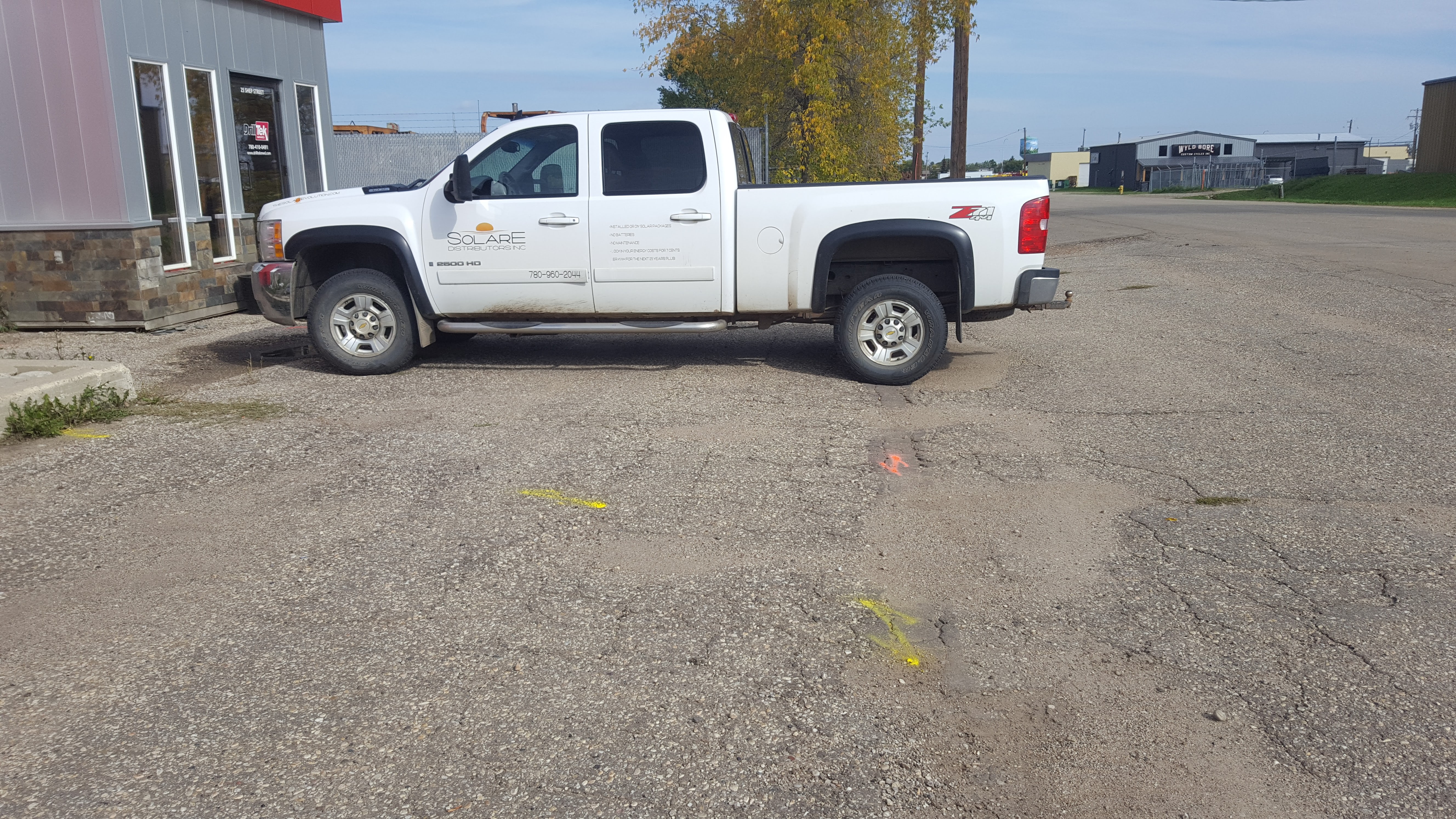

: GPR scans at a gas station in Calgary

: Power (red) feeding pumps and signal lines

: Vent pipes and USTs

: Power and production lines going to USTs

Pool Bottom Slab Scanning for Voids and Reinforcement with GPR in Calgary, AB

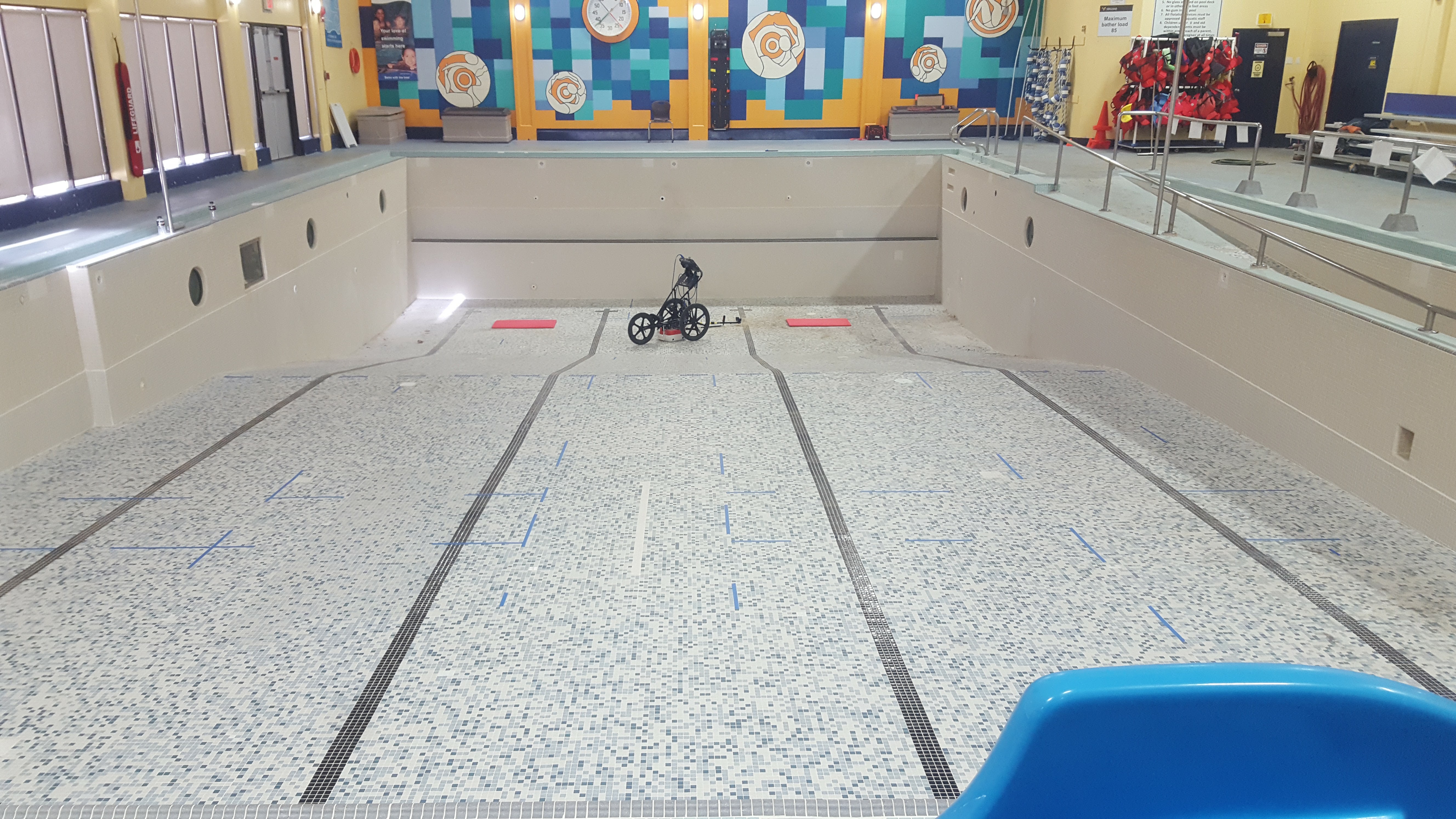

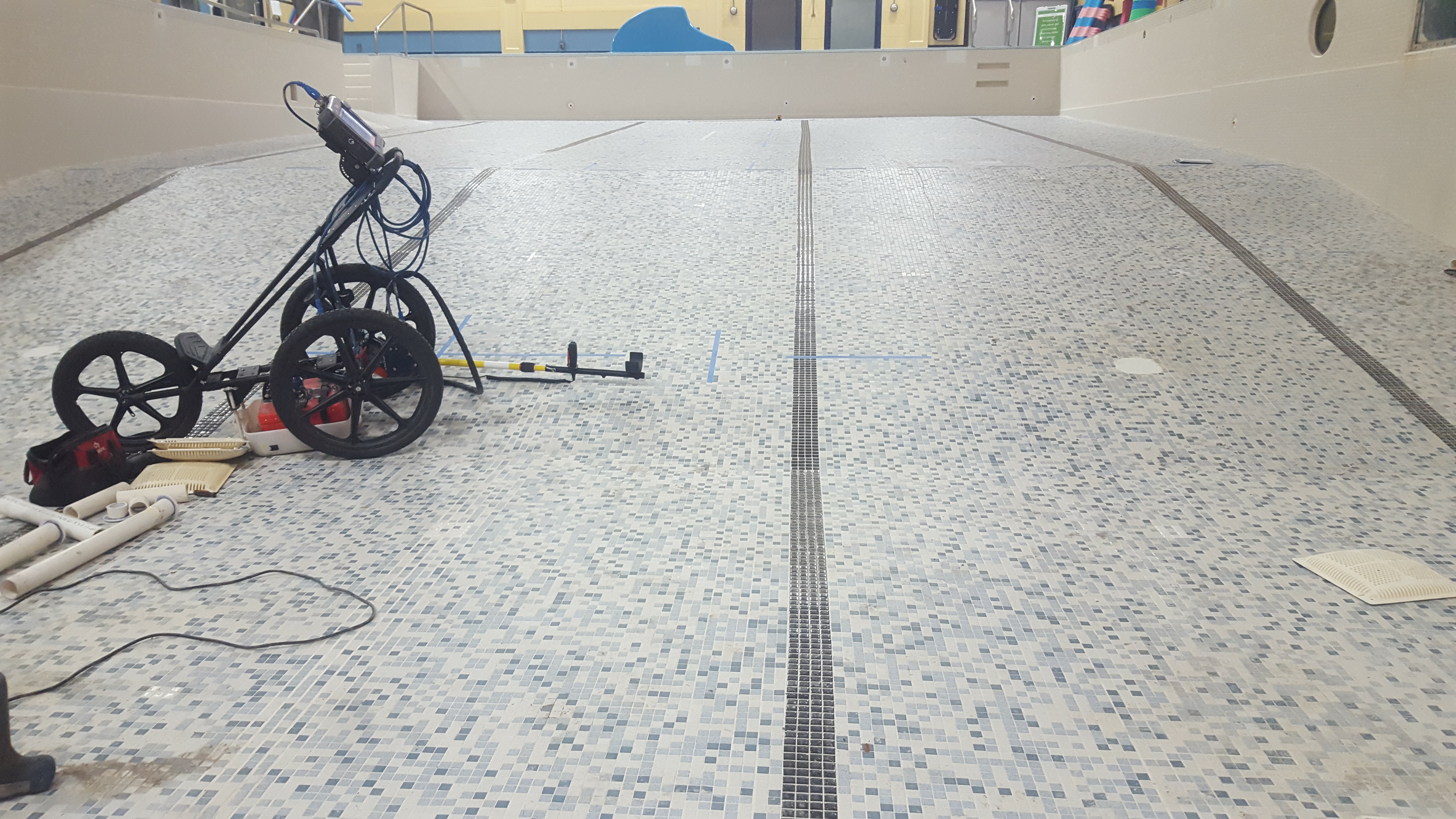

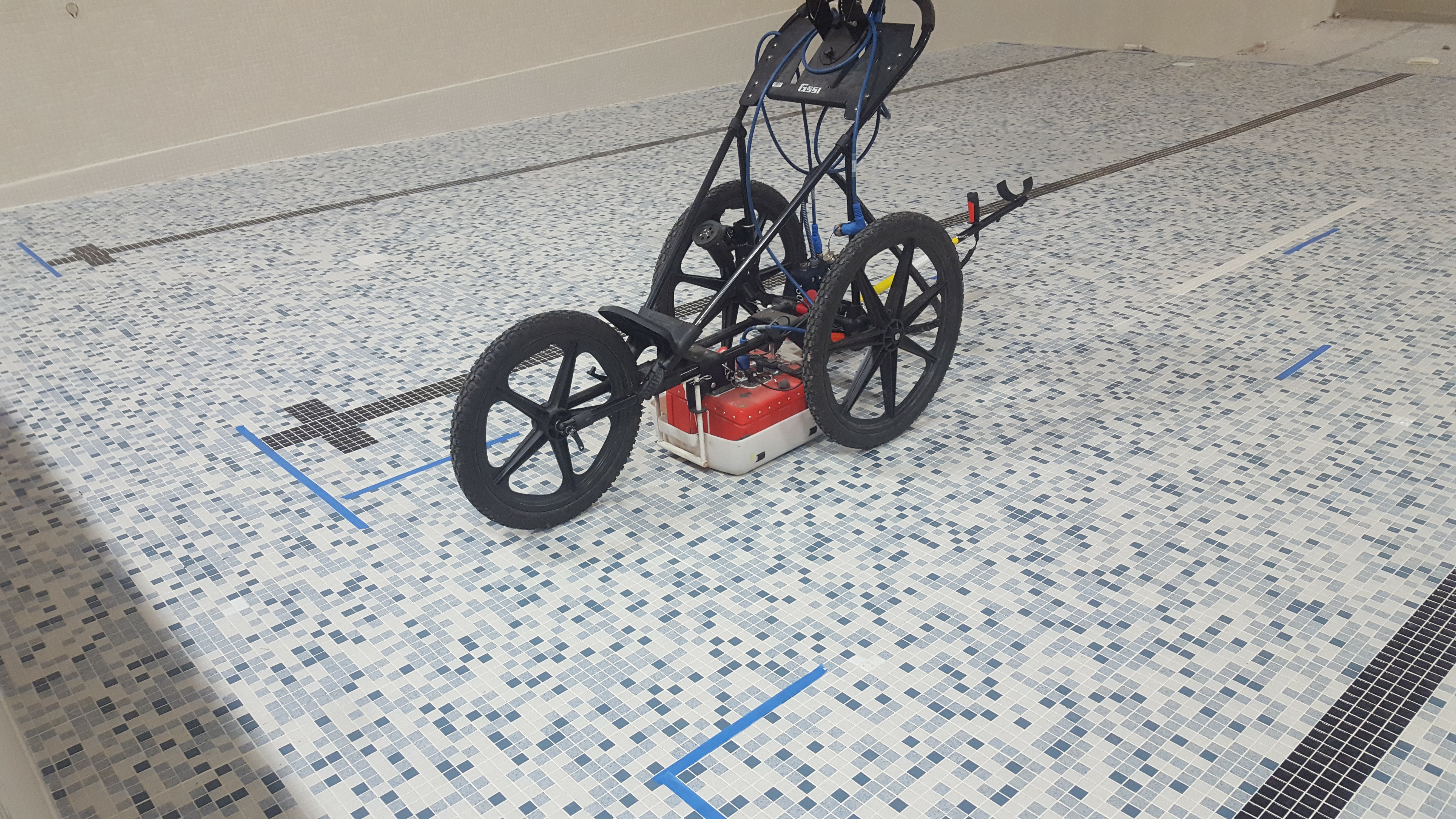

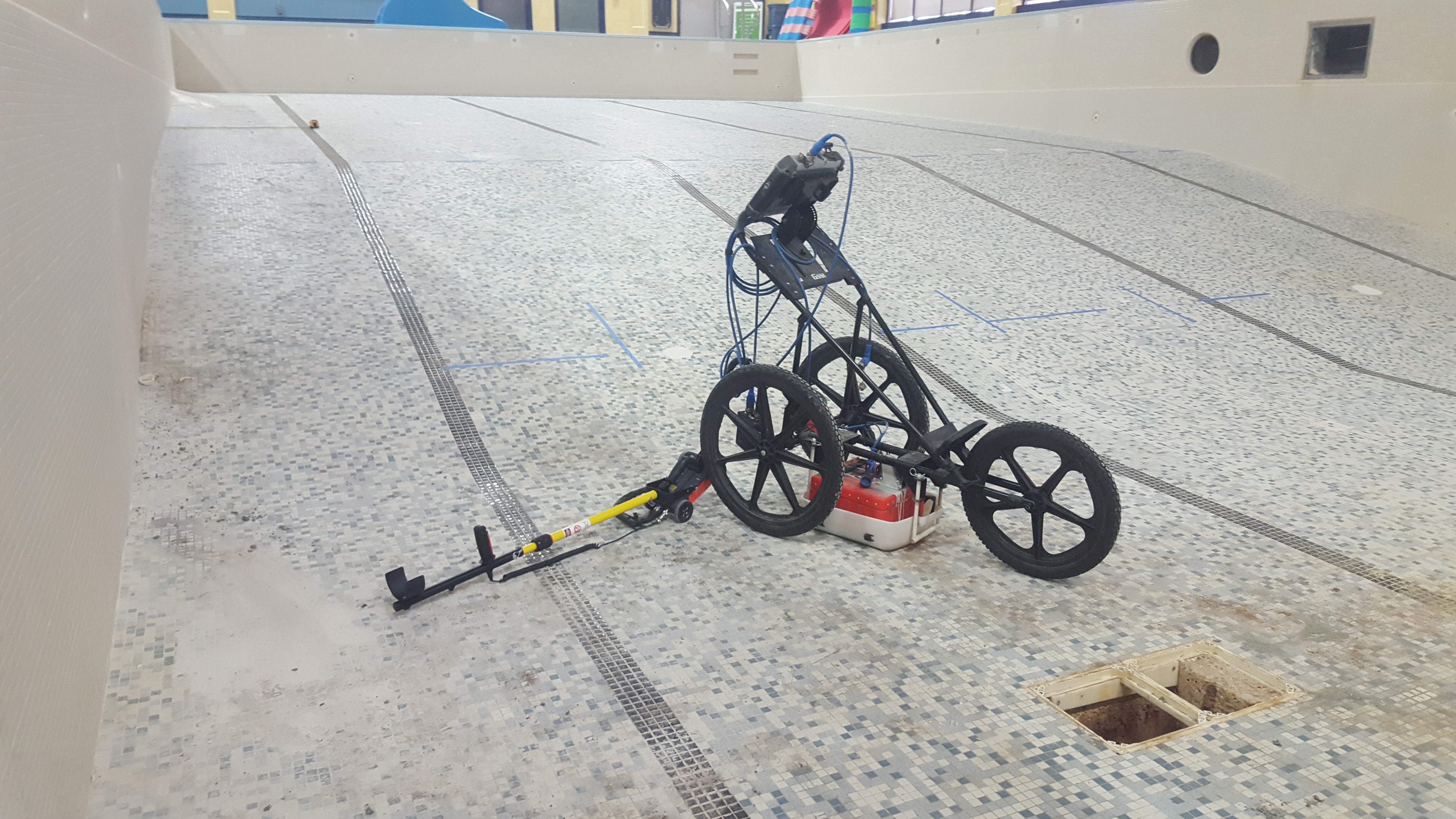

Pool bottom slab scanning with GPR

Main equipment used for reinforcement and voids

Looking for foundation piles

Close up at slab surface
Voids, Rebar and Electrical Conduits Mapping_Concrete Analysis_Slab-on-Grade, Calgary, AB

: Rebar Mapping for the slab

: Void mapping for area 1

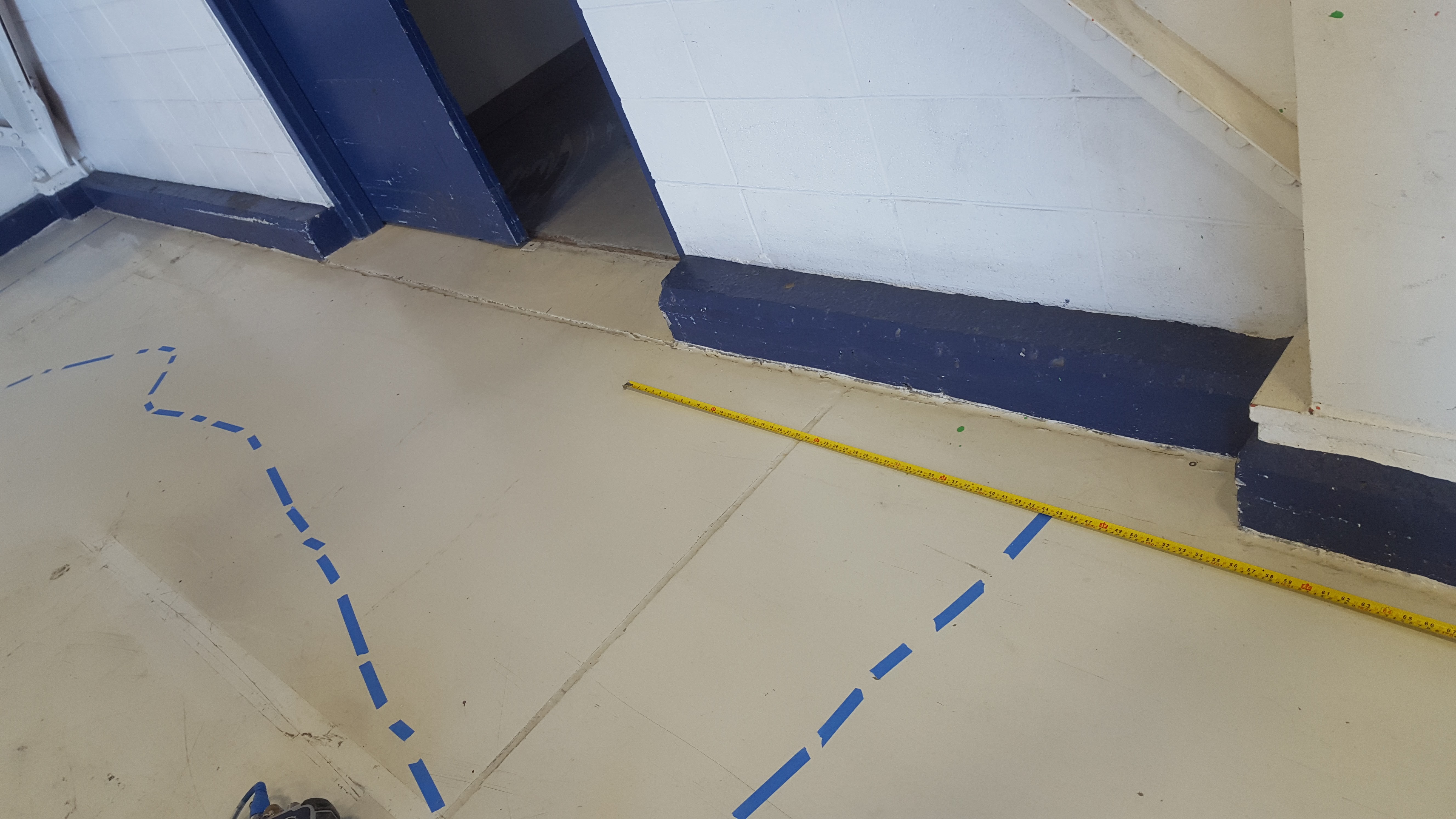

: Voids extent below a concrete slab on grade

: Measuring the area

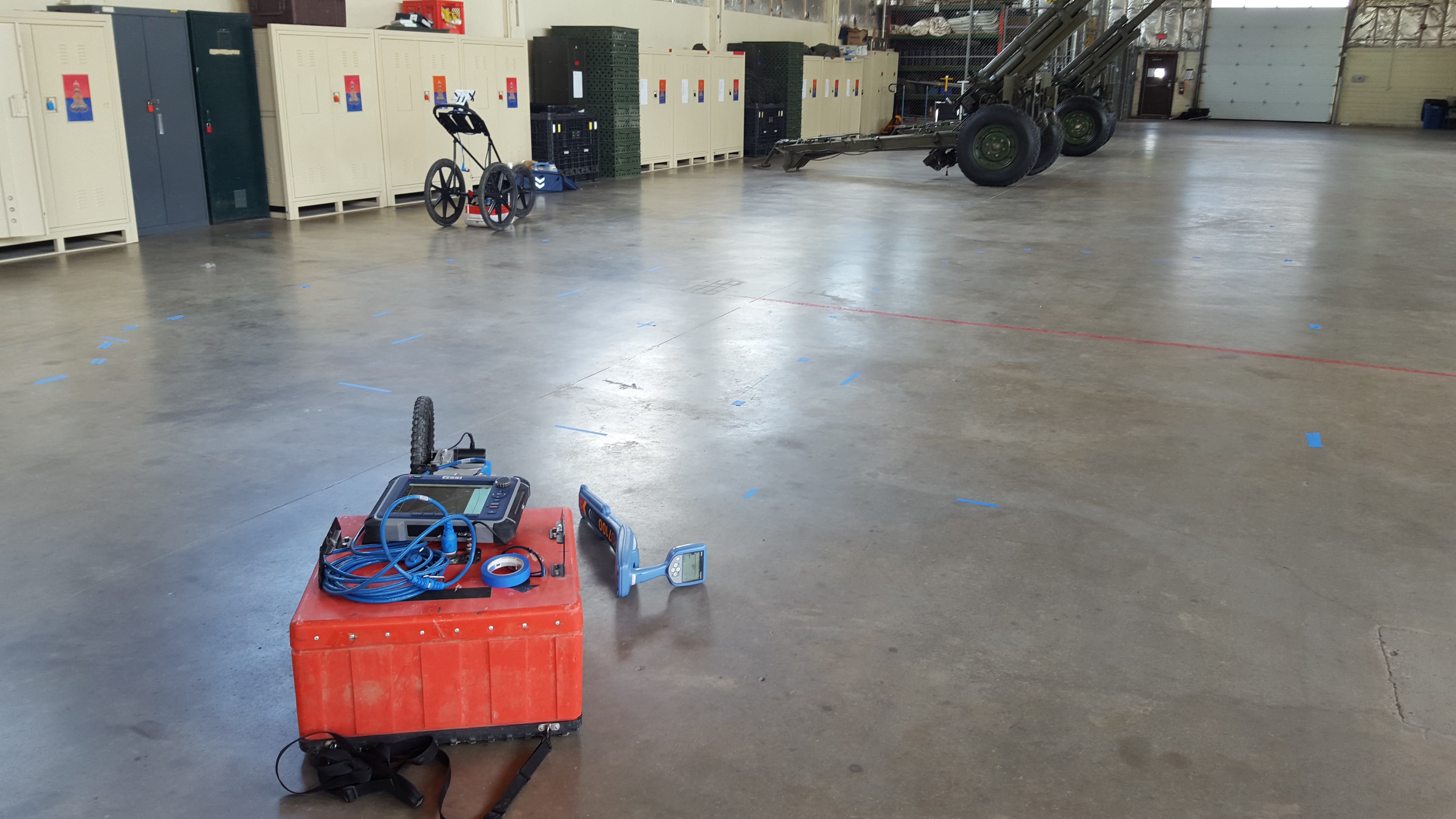

: The void area from distance GSSI Sir4000 and Palm antenna

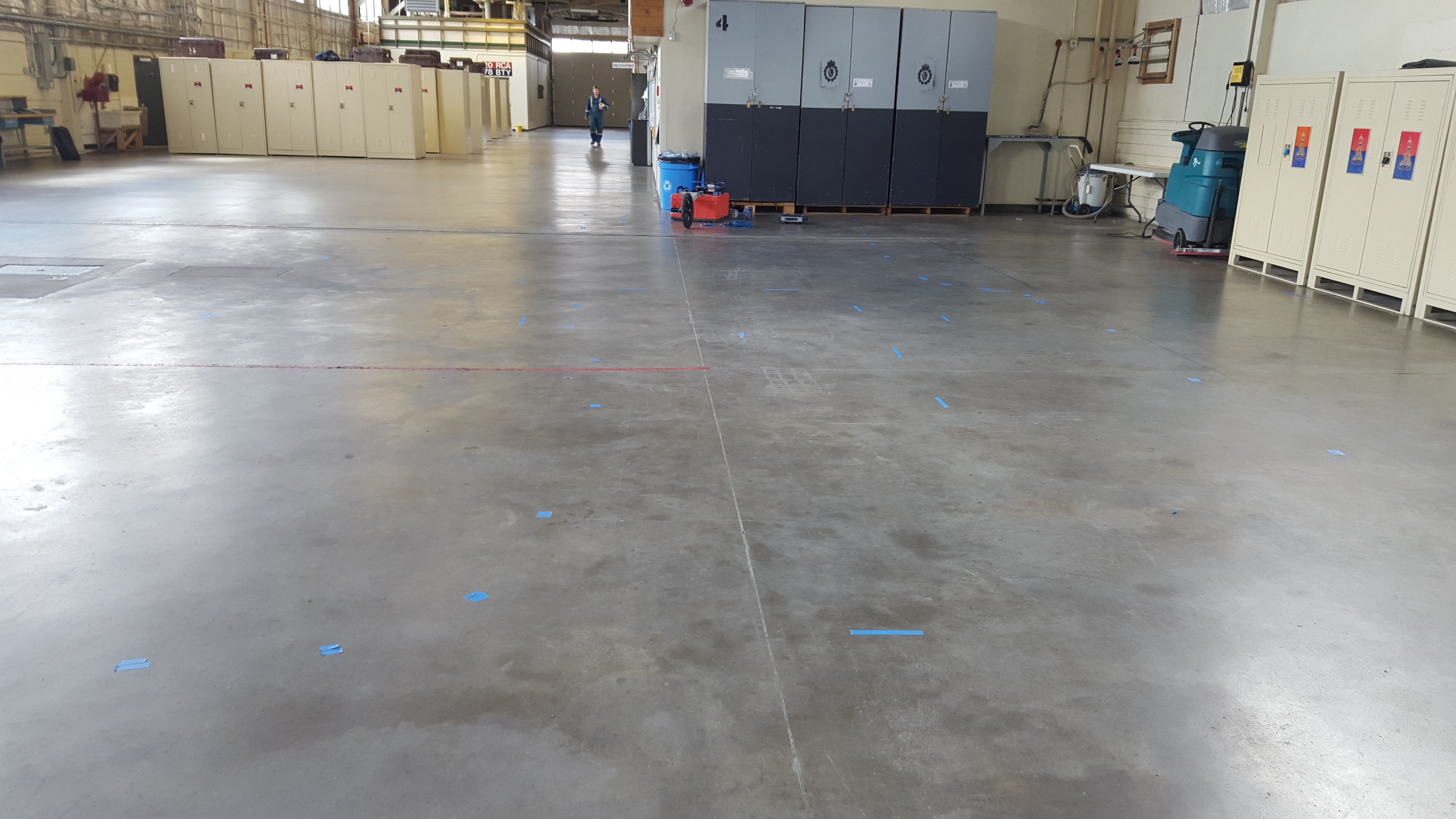

: GPR scanning slab on grade 2

: Electrical Conduits found within the slab

: The hangar area from distance

GPR Scanning for Power, Communication and Water Lines at Dental Office, Edmonton, AB

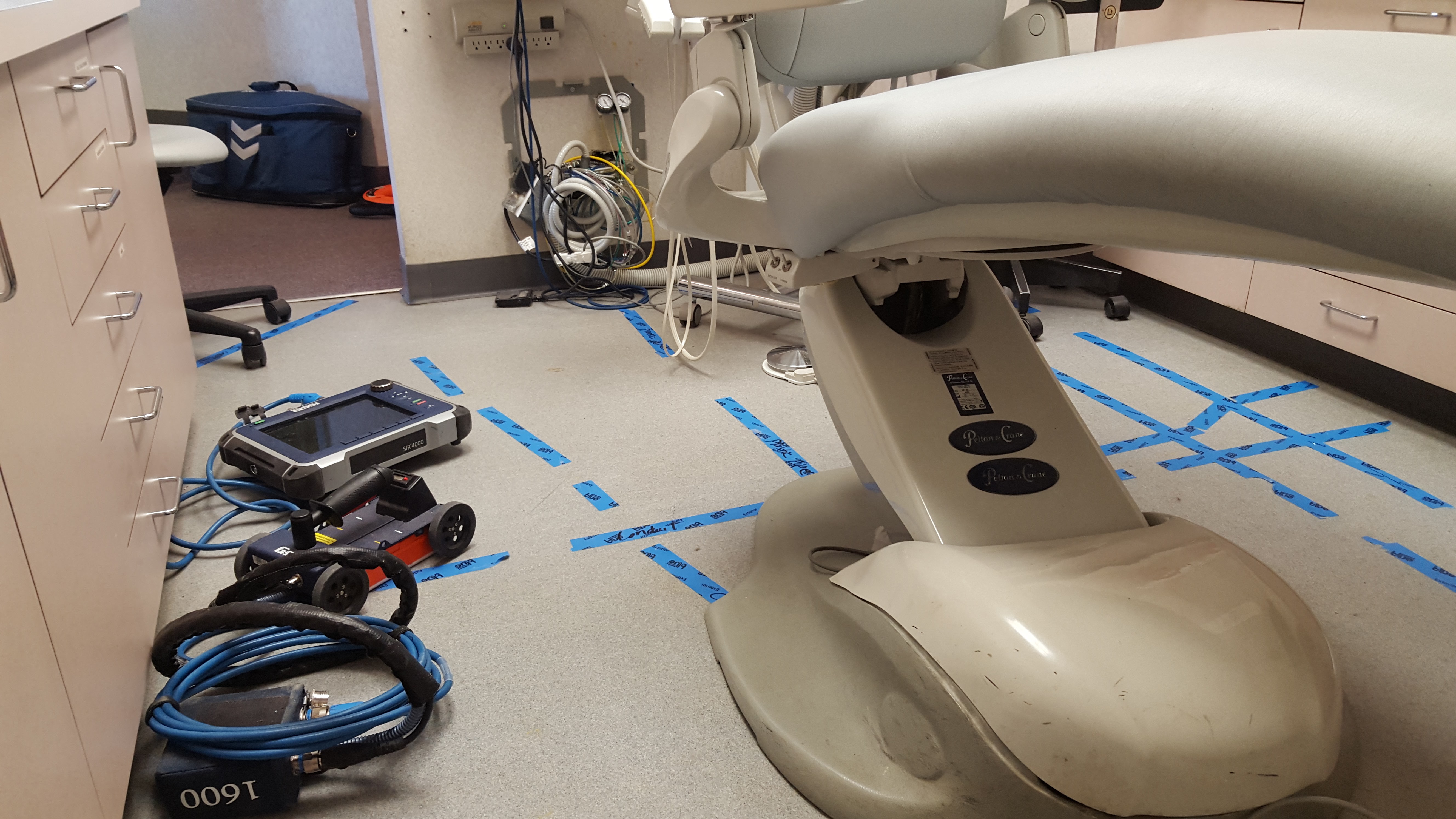

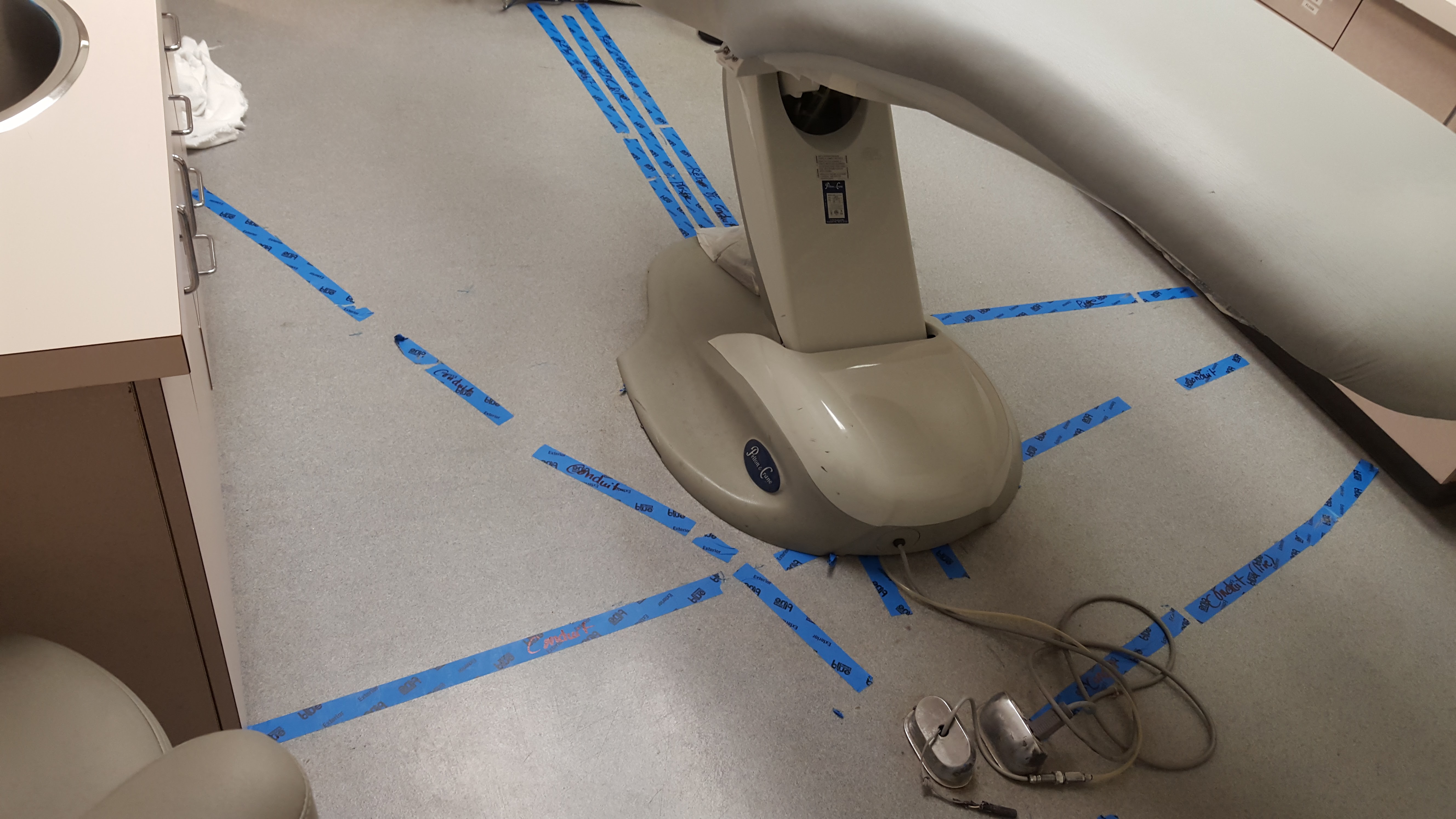

: Power and water to the chair were mapped with a 1600 MHz GPR antenna

: A broken water line was detected

: Very dense network of small lines within the slab

: Power lines running within the slab

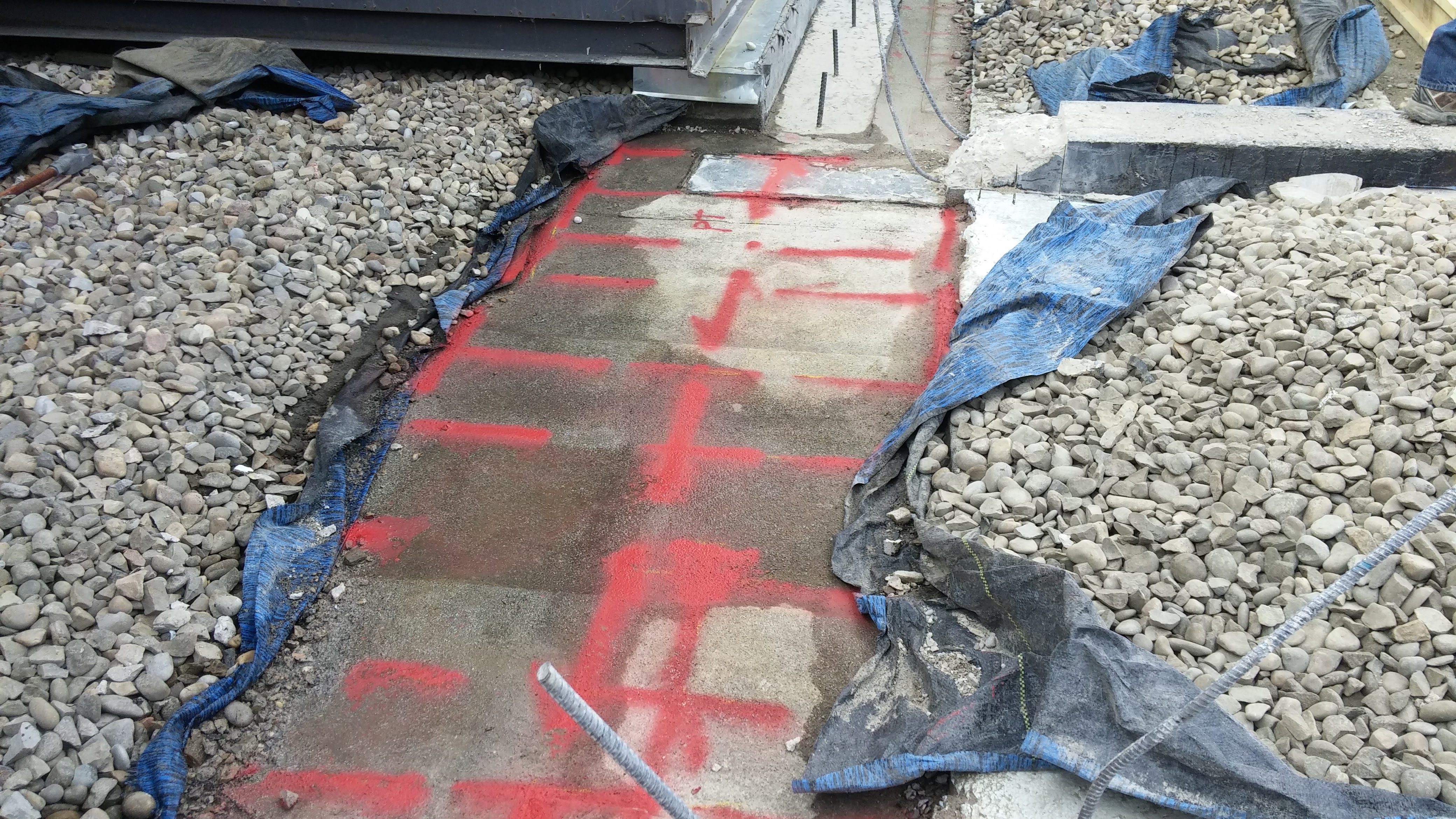

Rebar Mapping, NE Calgary, AB

: This slab was very green

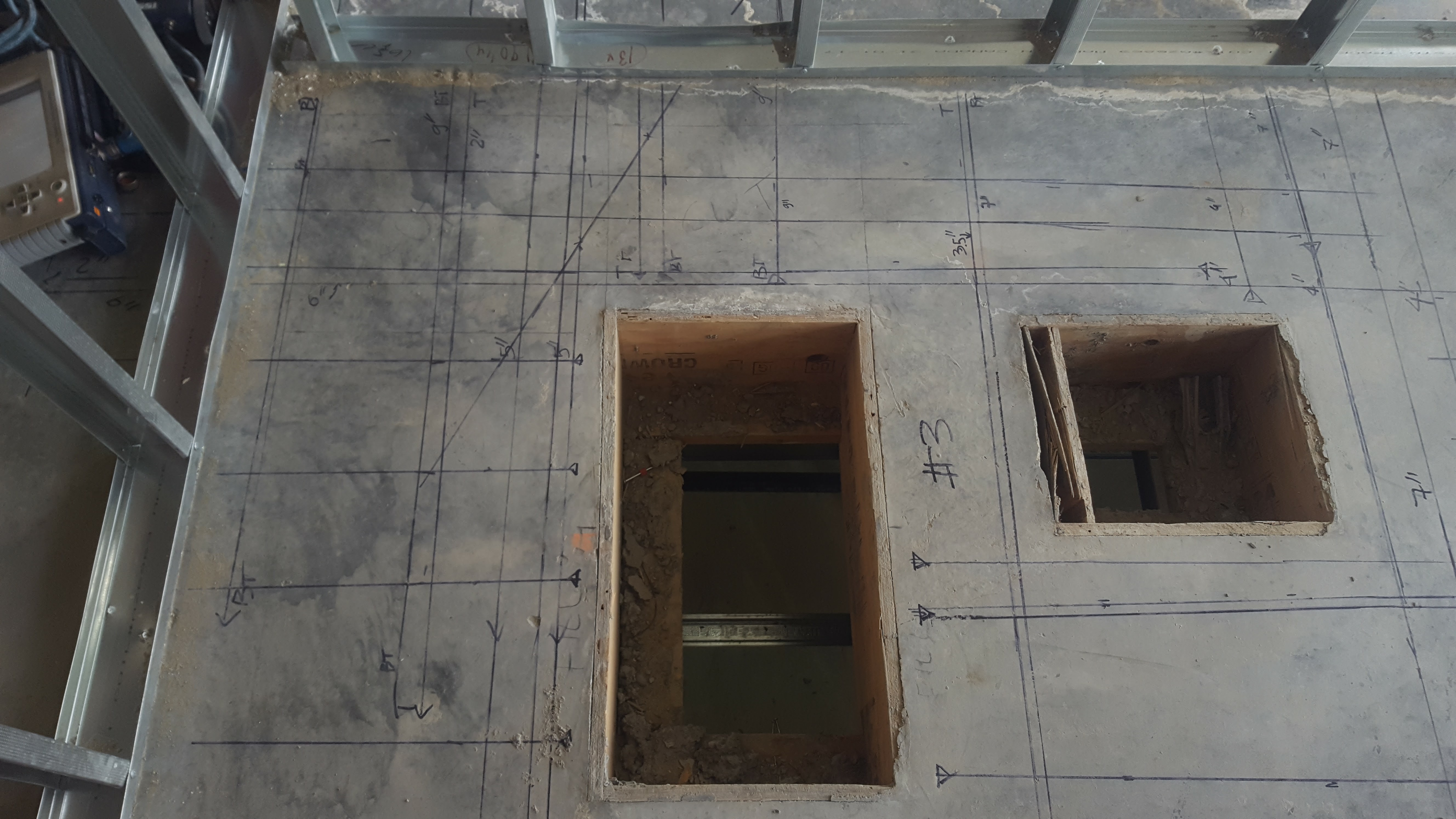

: Rebar Mapping for opening enlargement

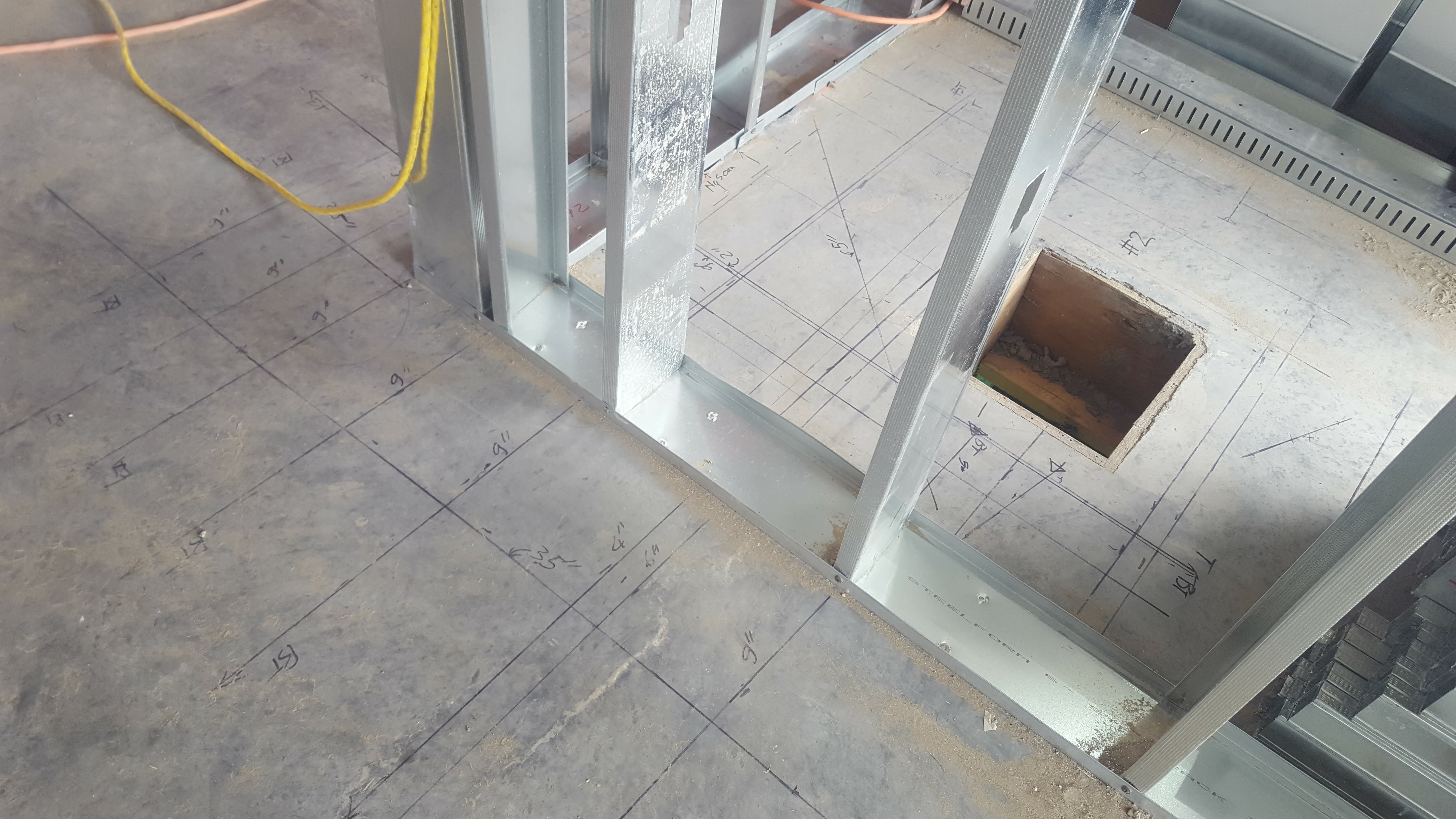

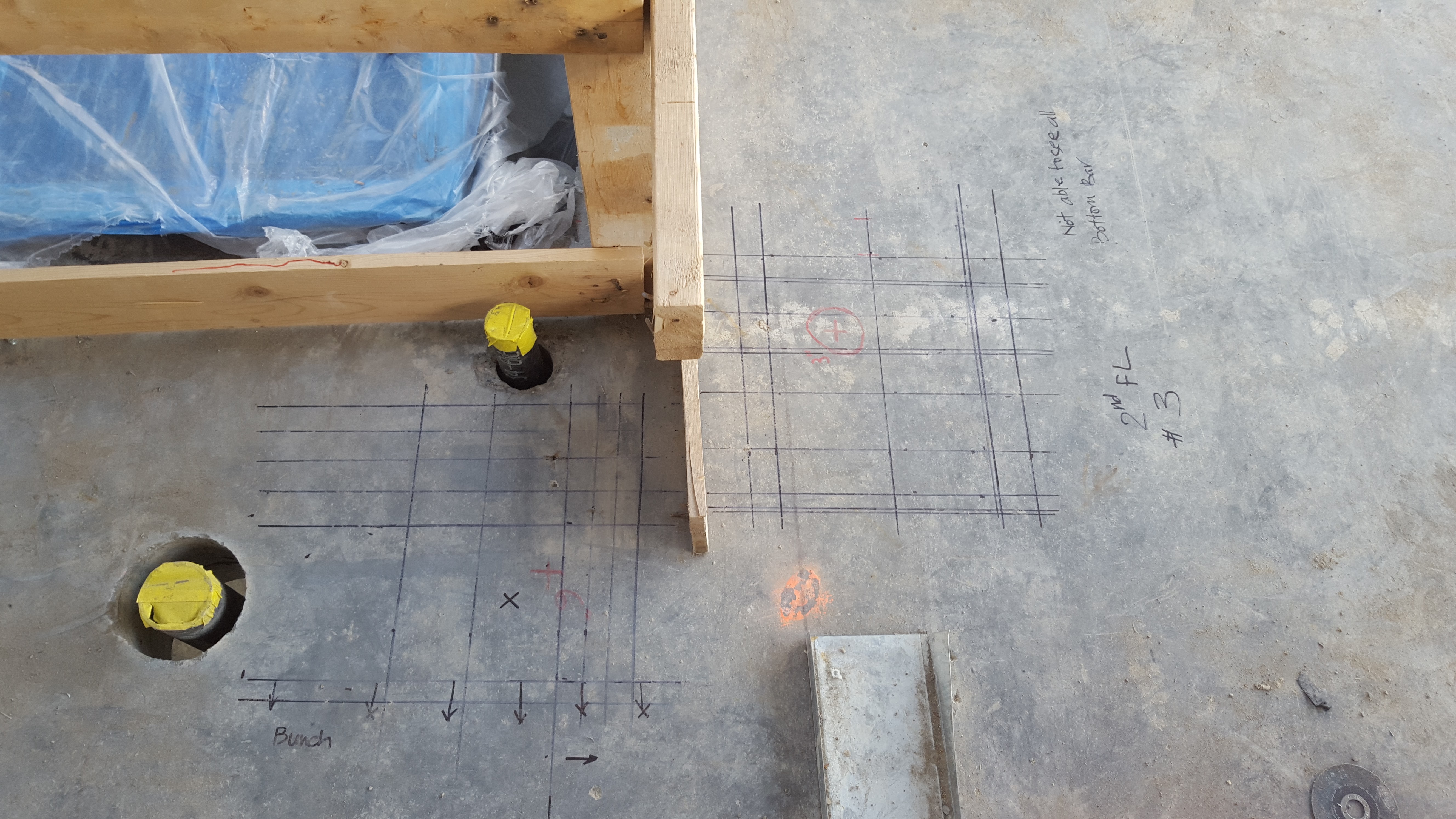

: rebar mapping around opening to tie in new bars and refill concrete

: GPR scanning prior to coring

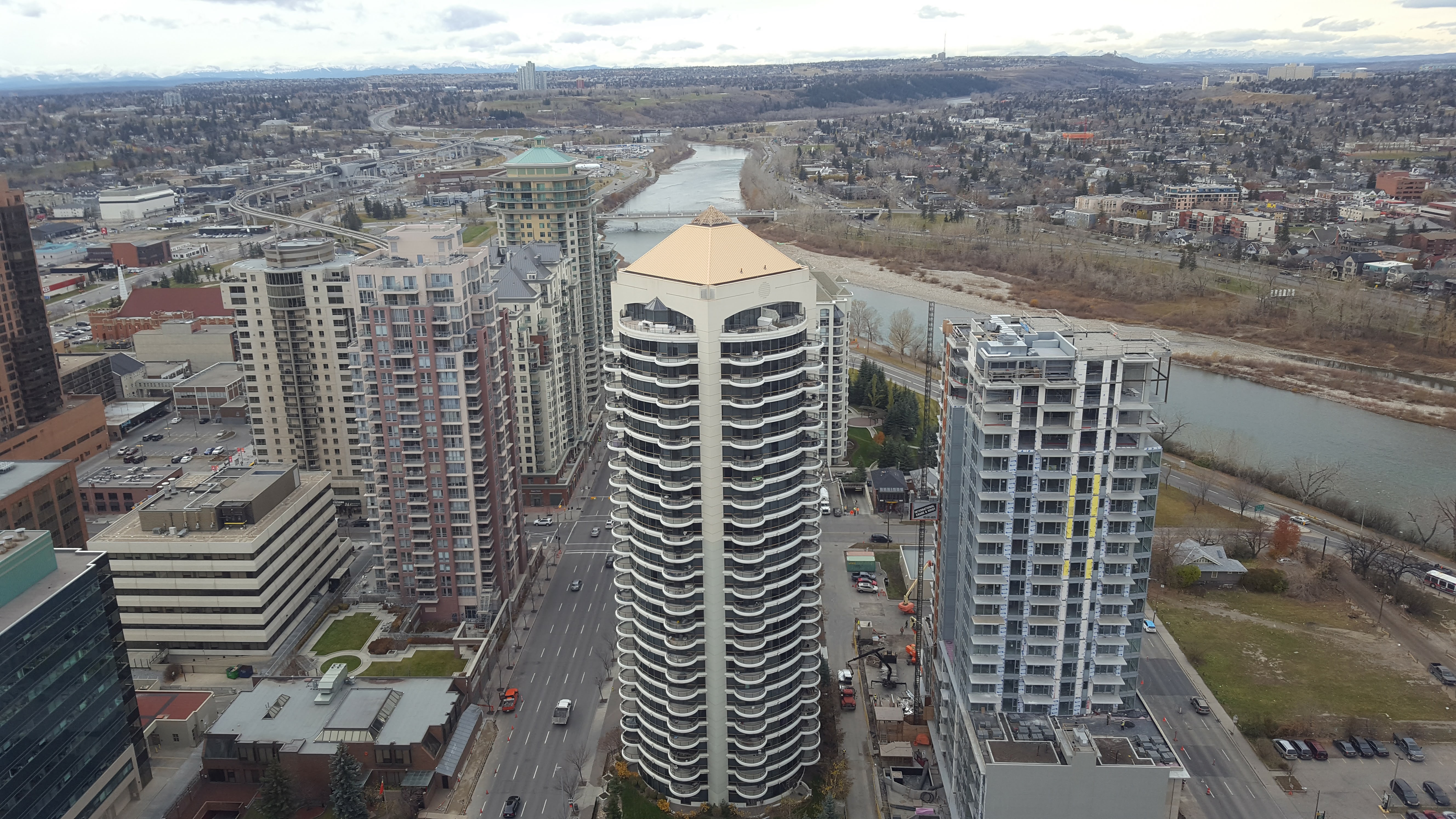

GPR Scans on Highrise Building, Downtown Calgary, AB

: GPR Scanning on Highrise Building_Downtown Calgary

: Power within a wall

: Electrical embedded in floor

: Rebar mapping on wall

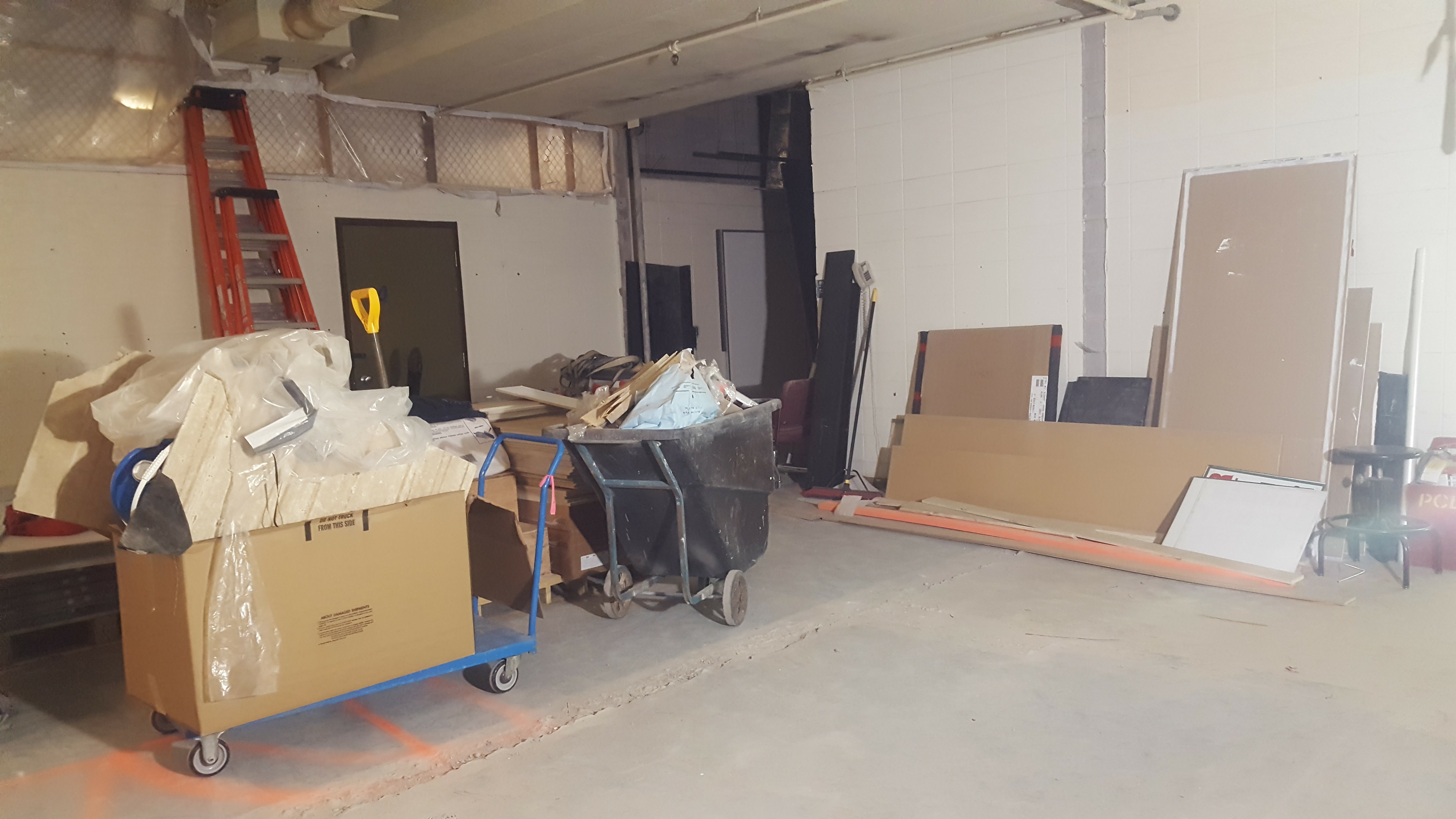

GPR Scanning Performed Prior to Demolition, Edmonton, AB

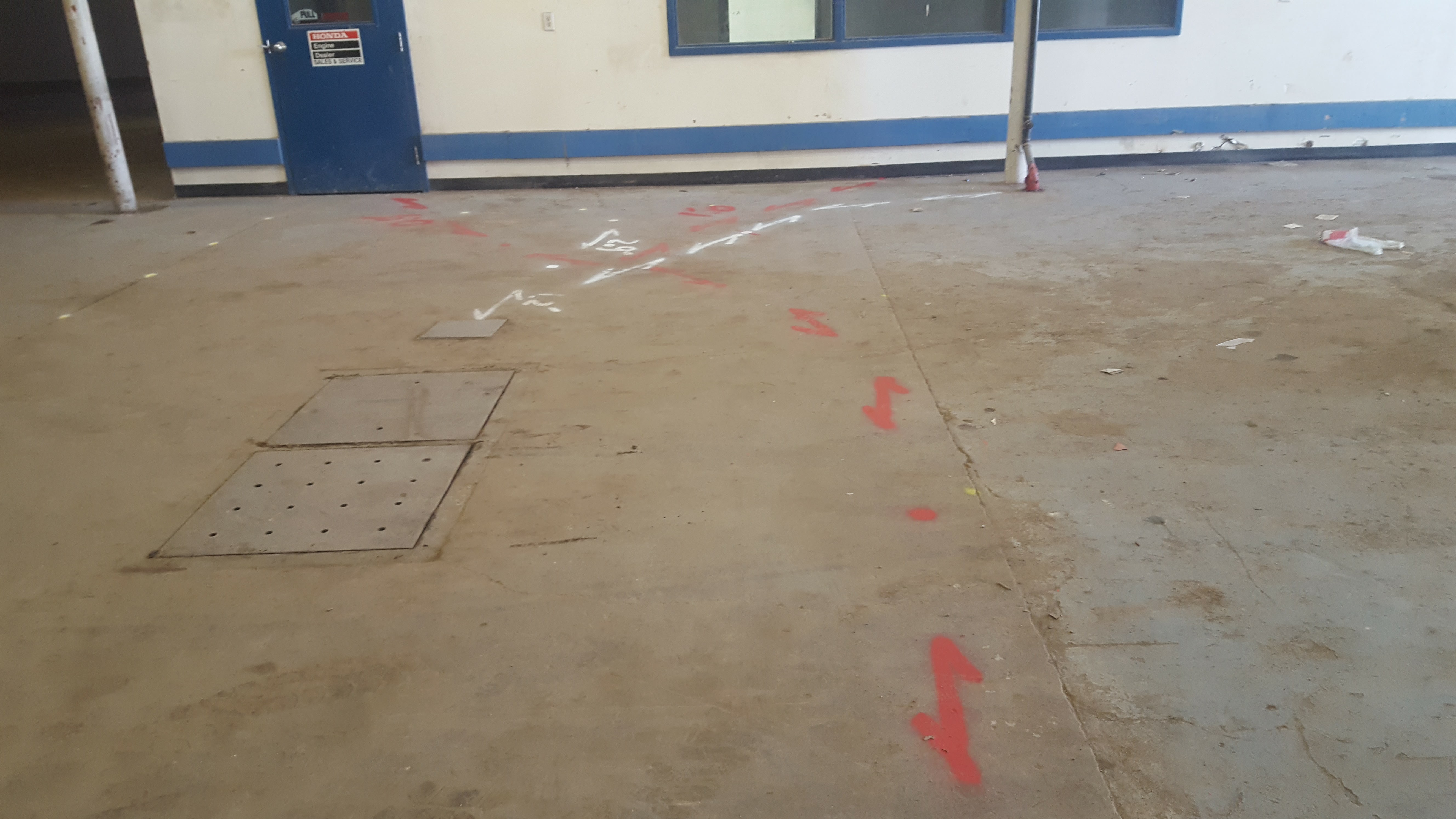

: Sewer, Drainage and Power lines

: Power lines (red) and drain pipes (white)

: Main power crossing shop bay

: Shallow lines embedded within slab was detected with high resolution antenna

Concrete Scanning to Map Radiant Heat Using GPR, Medicine hat, AB

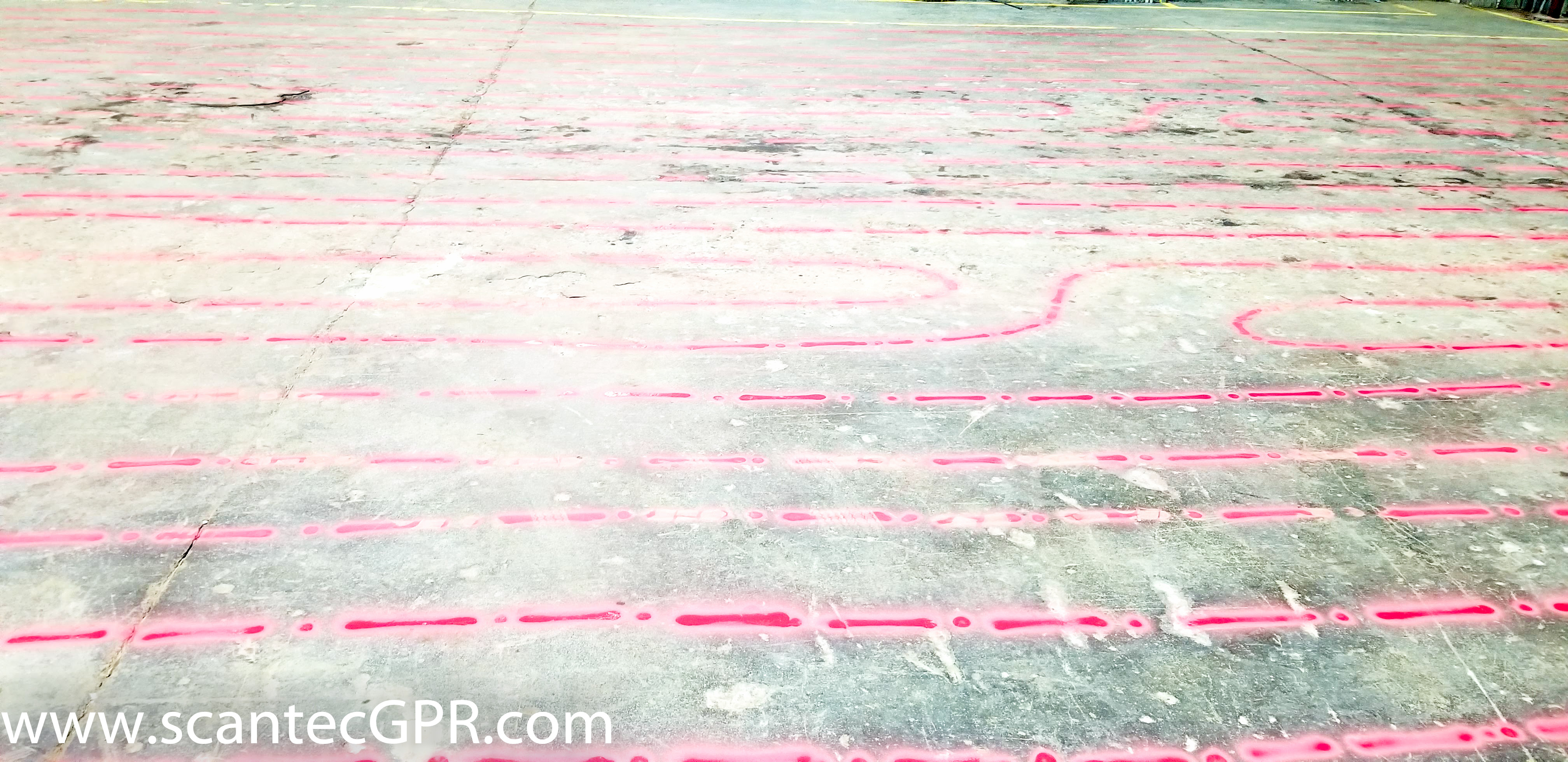

: Radiant Floor Heating mapping before trenching for new drains

: Heating tubes were mapped along with rebar

: Floor Scanning before cutting

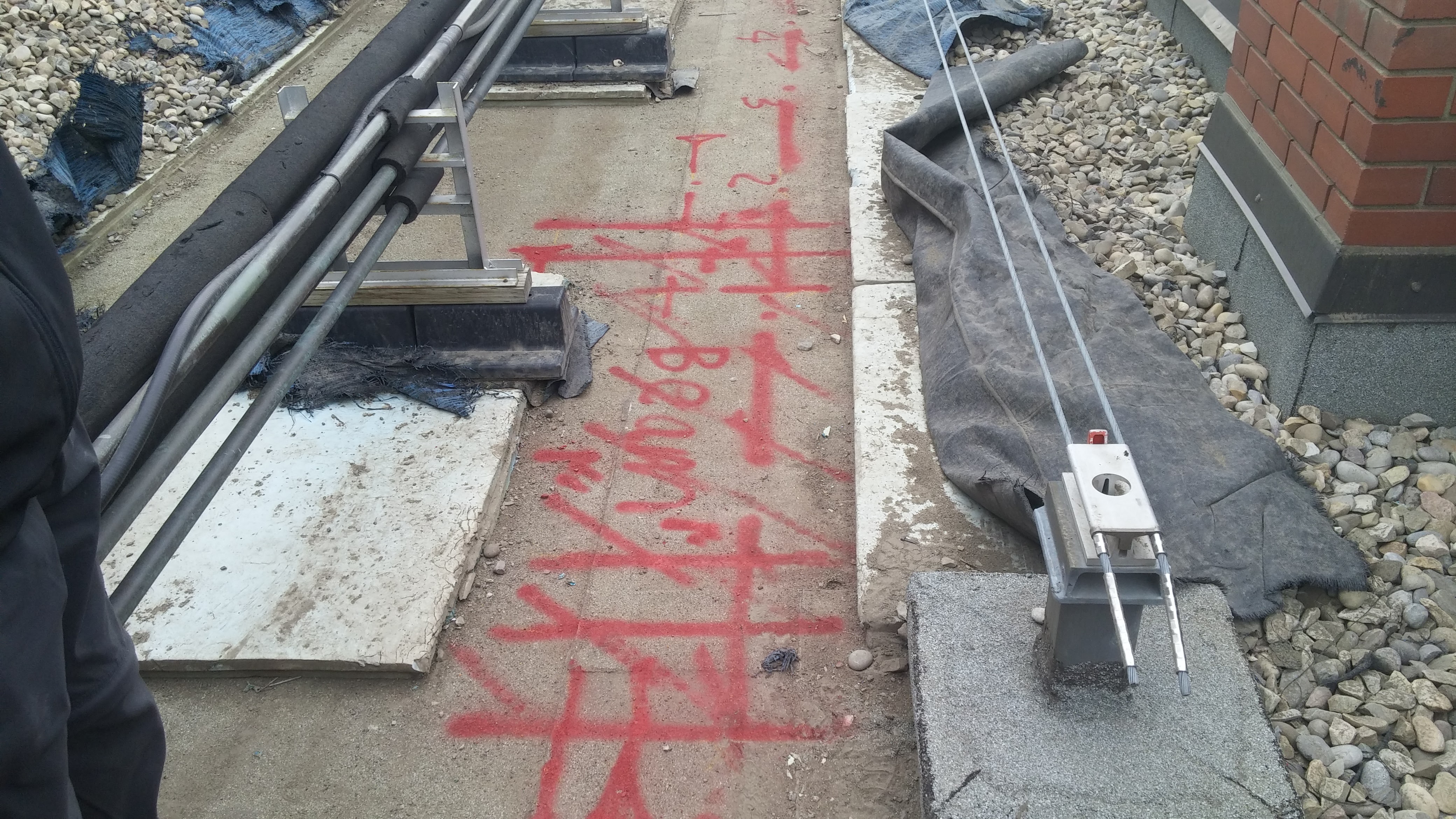

Cell phone Tower Update Projects in Calgary and Edmonton, AB

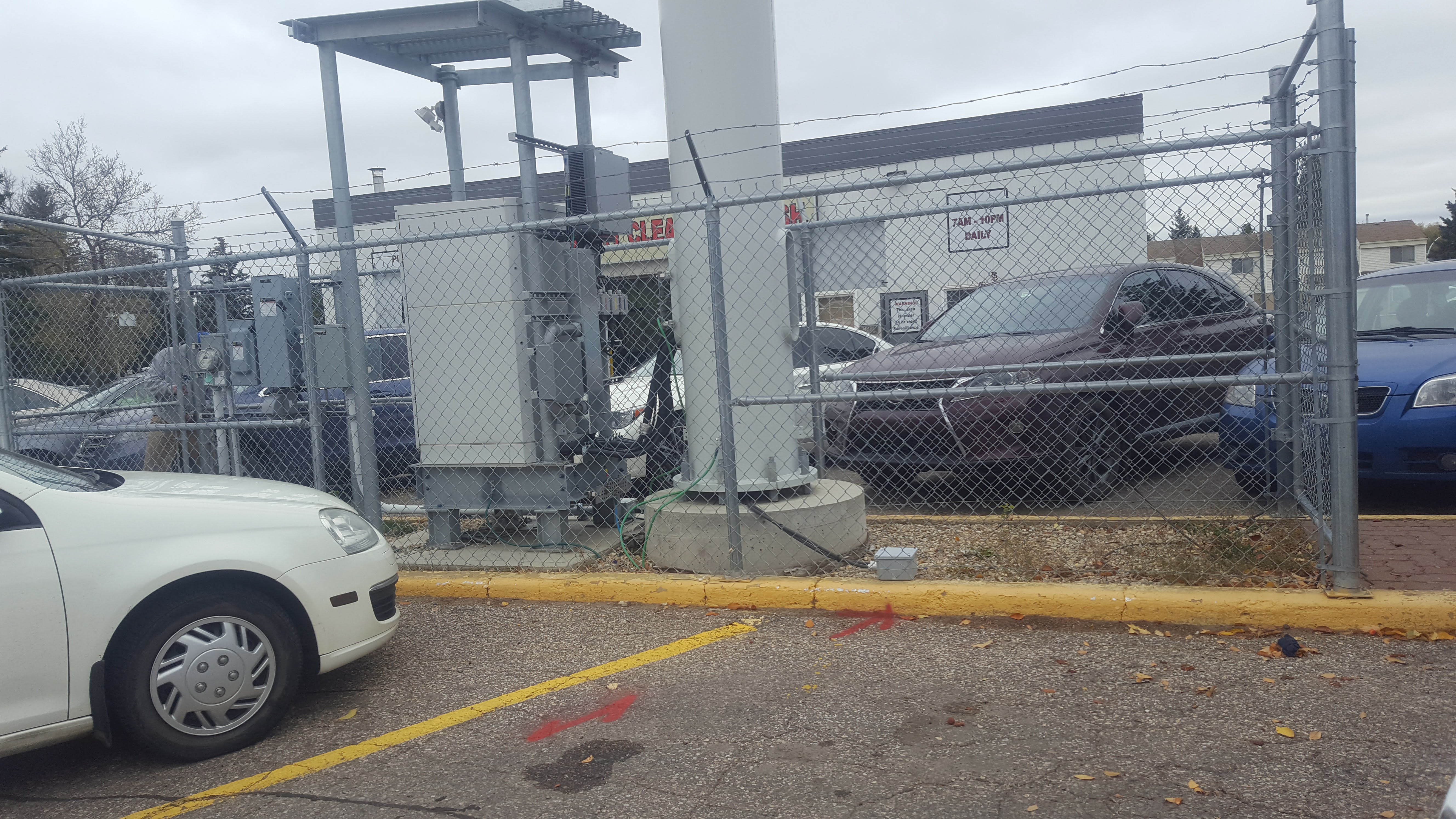

: Underground Power supplies (red) were located with depth

: Surrounding Power lines were also marked

: Gas line was marked as yellow

: Power Line

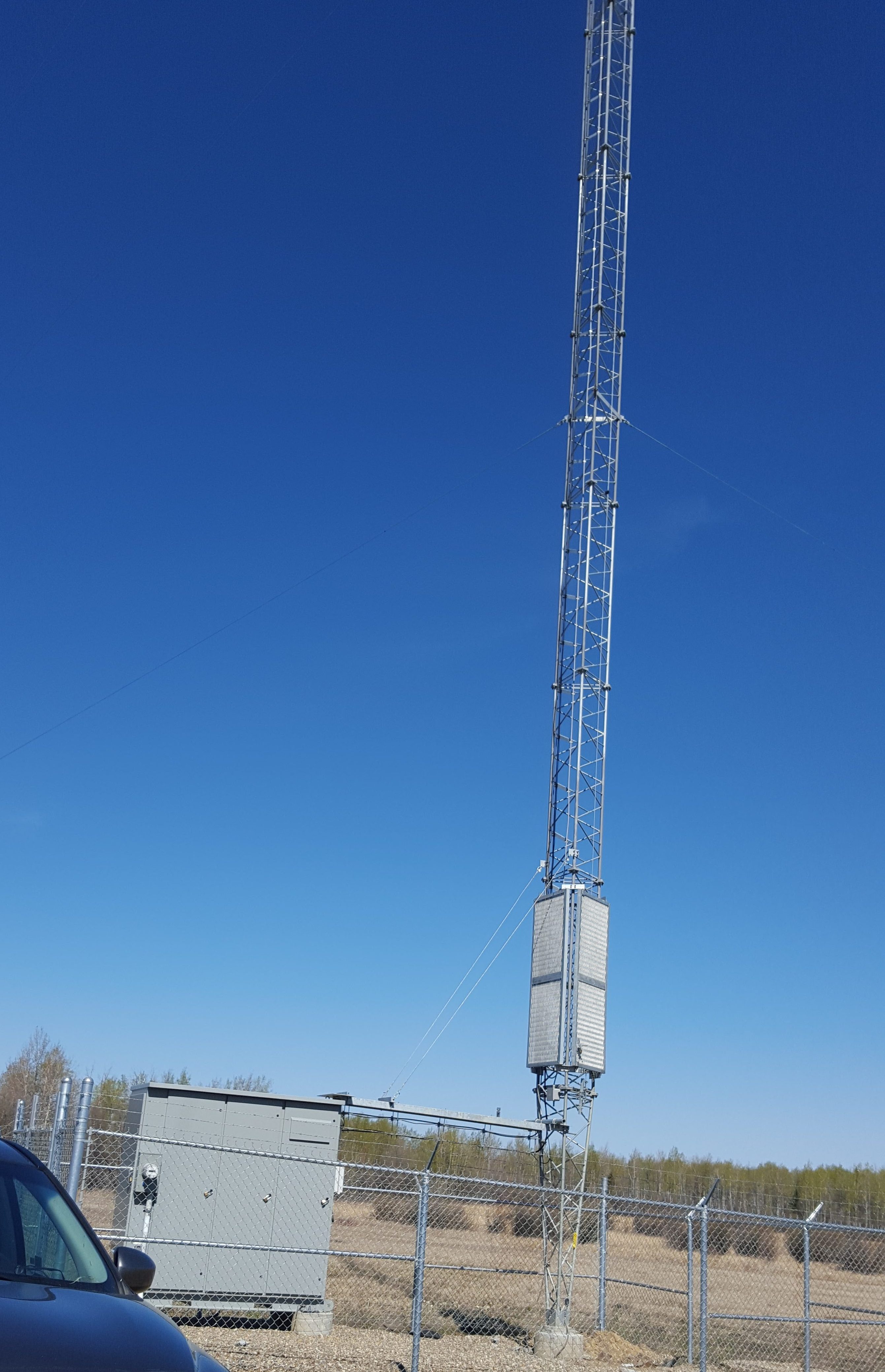

Phone Towers Concrete Scanning Throughout Northern Alberta

: GPR concrete foundation scanning

: GPR concrete foundation scanning

: Scanning was performed in different counties throughout northern Alberta

: GPR concrete foundation scanning project

Deep GPR Penetration Utility Scanning, Red Deer, AB

: GSSI 200 Mhz antenna with survey wheel and SIR4000 Controller

: 400 MHz scans

: Exterior portion of the site

: Exterior portion of the site

: Drilling crew went ahead for the borings

: Underground and embedded lines in slab

: Anomalies found

: The entire floor with concrete lab-on-grade was scanned with 1600 MHz, 900MHz, 400 MHz, 200 MHz antennas and swept with regular EM Radiodetection line locating equipment prior to deep bore hole drilling.

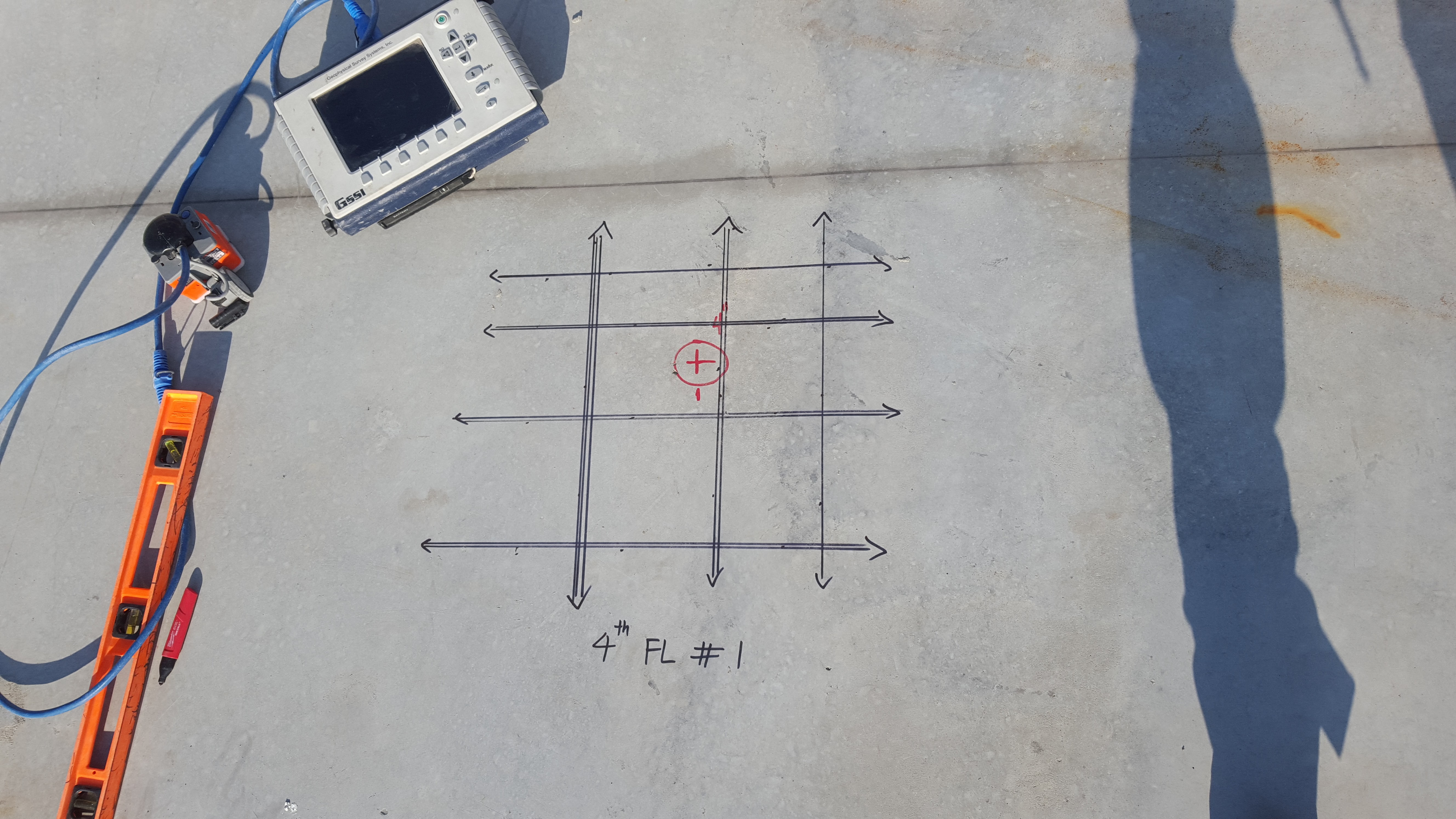

Concrete GPR Scanning prior to Coring and Cutting, Lethbridge, AB

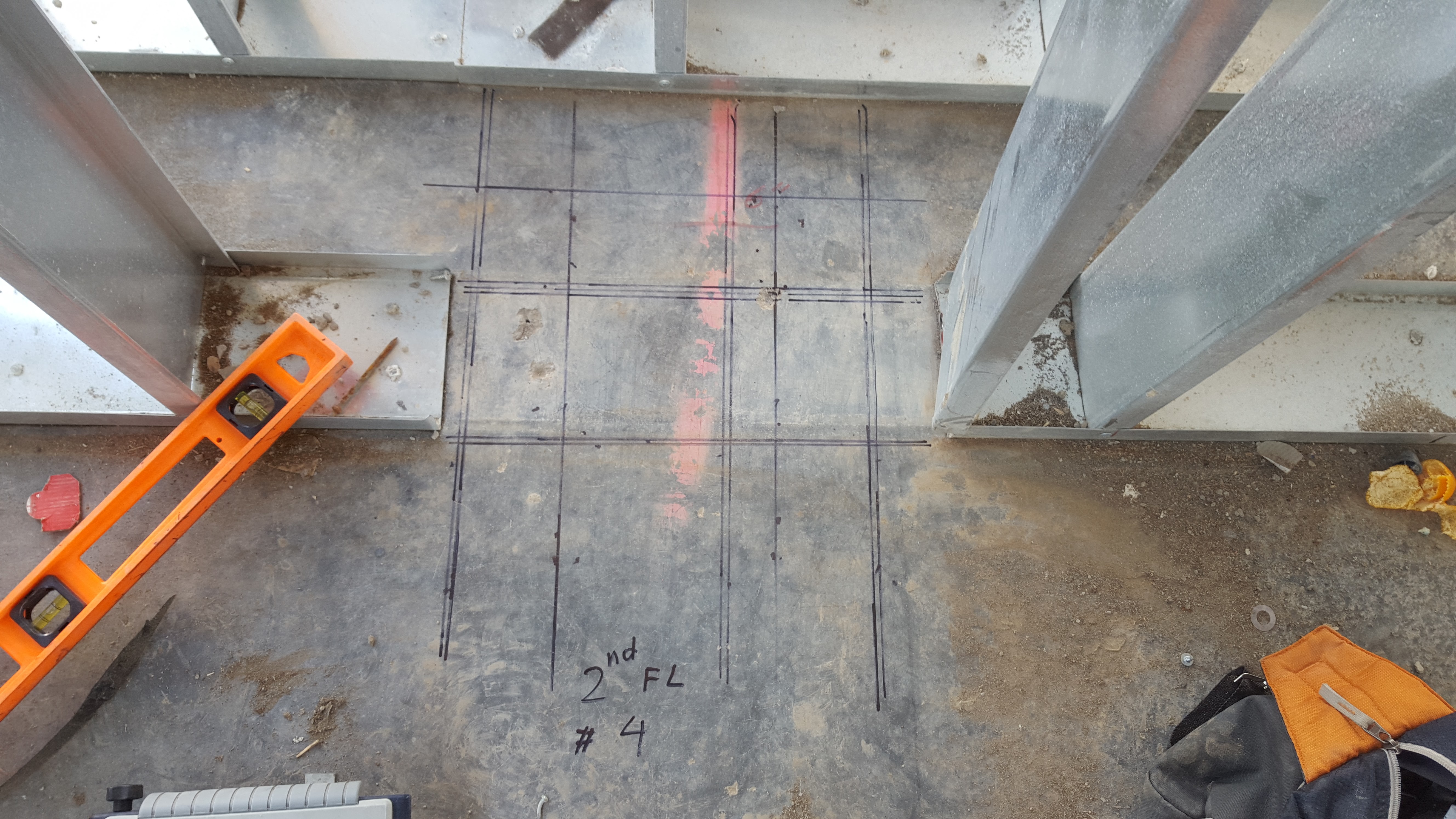

: Slab thickness, rebar size and spacing, depths, voids and location of conduit or critical objects can be determined

: Location of hole can be easily chosen

: Findings were marked on the floor

: Palm antenna can easily scan tight areas and close to walls

: Findings were marked on the floor

Voids location below Concrete, GPR Scanning in Sherwood Park, AB

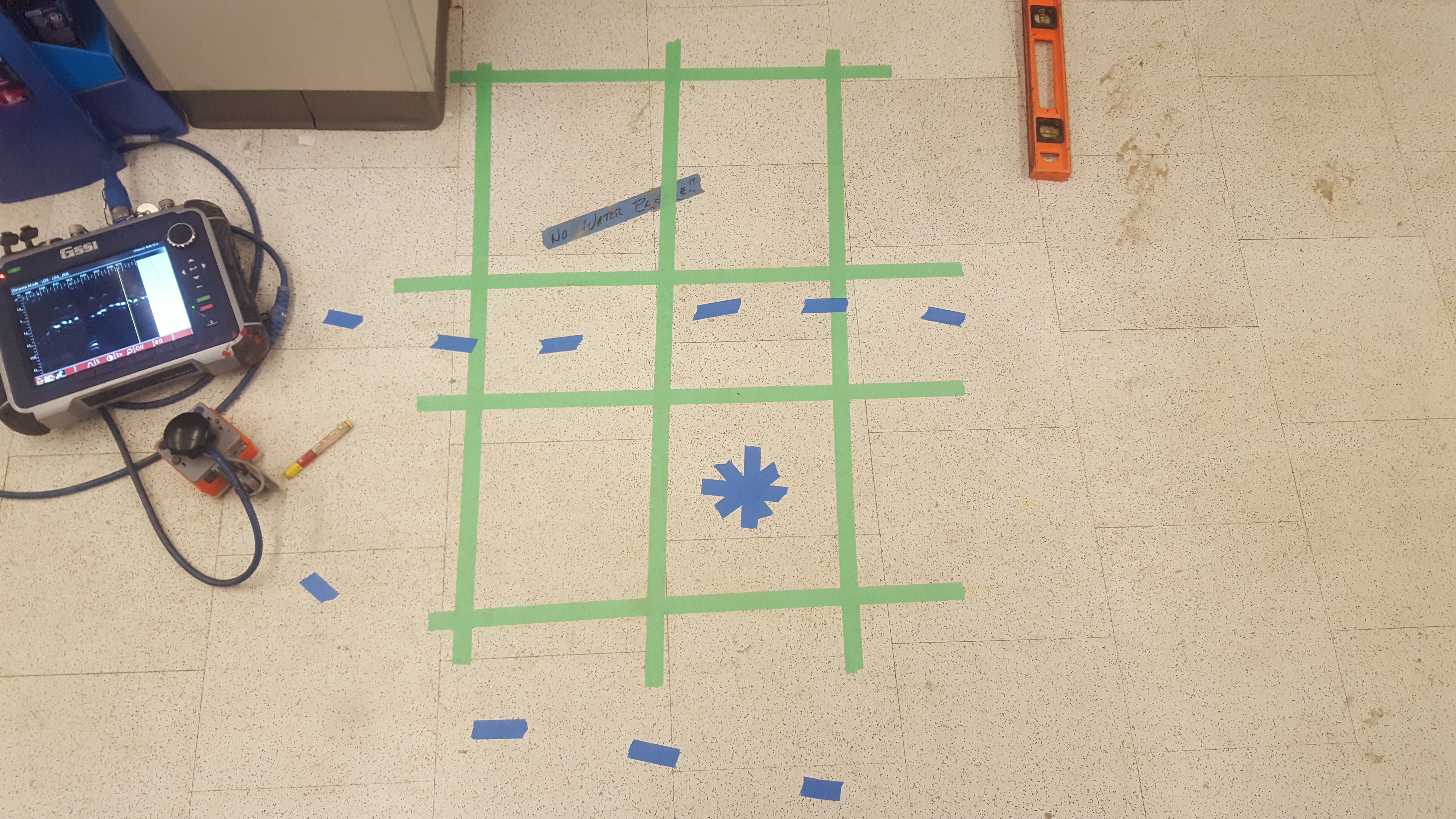

: Voids area within the dashed line; * mark is recommended test core

: Area 2 with broken water line

: Void area 3

: The scanning helped the contractor to determine the best location to start the investigation and repair the slab
